Product Description

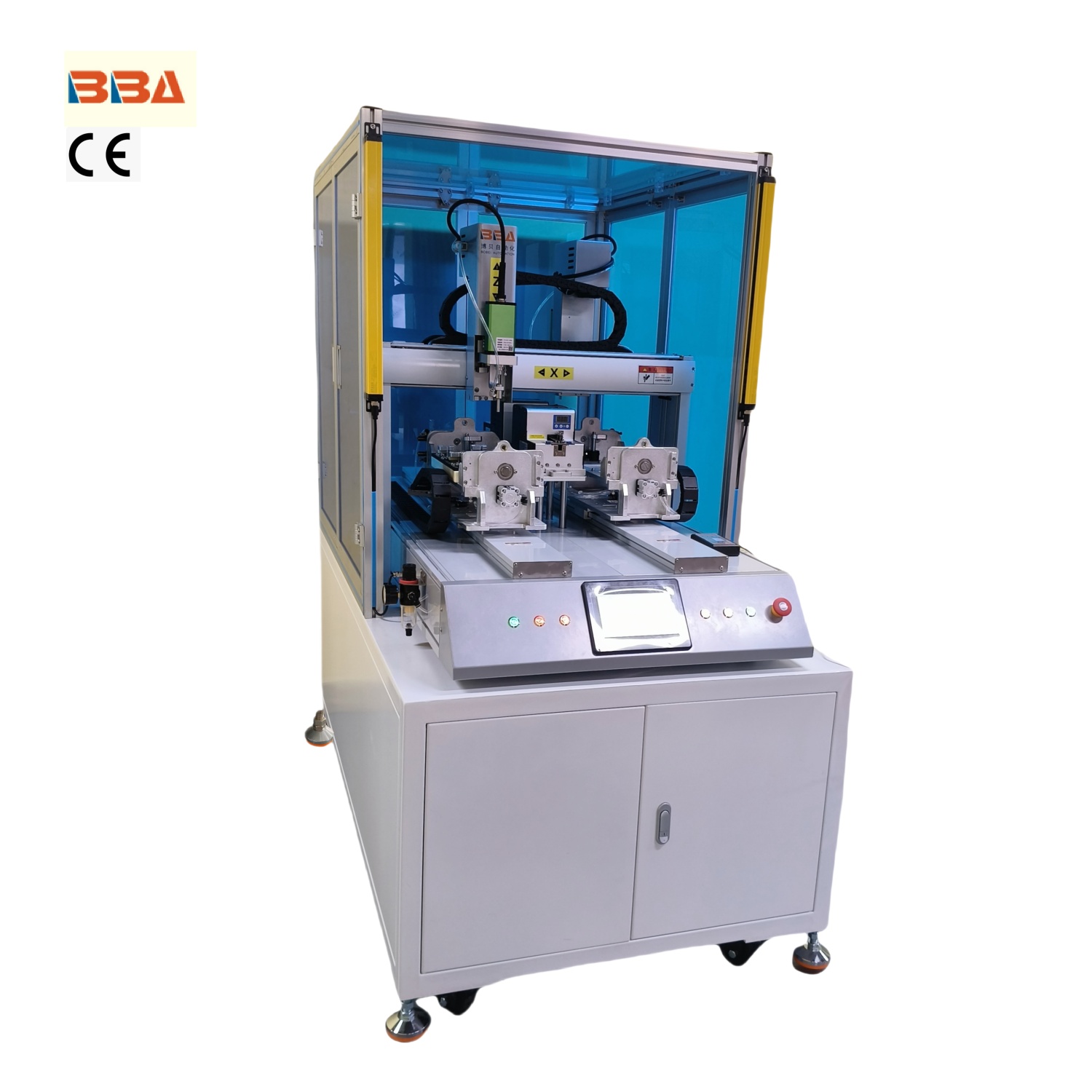

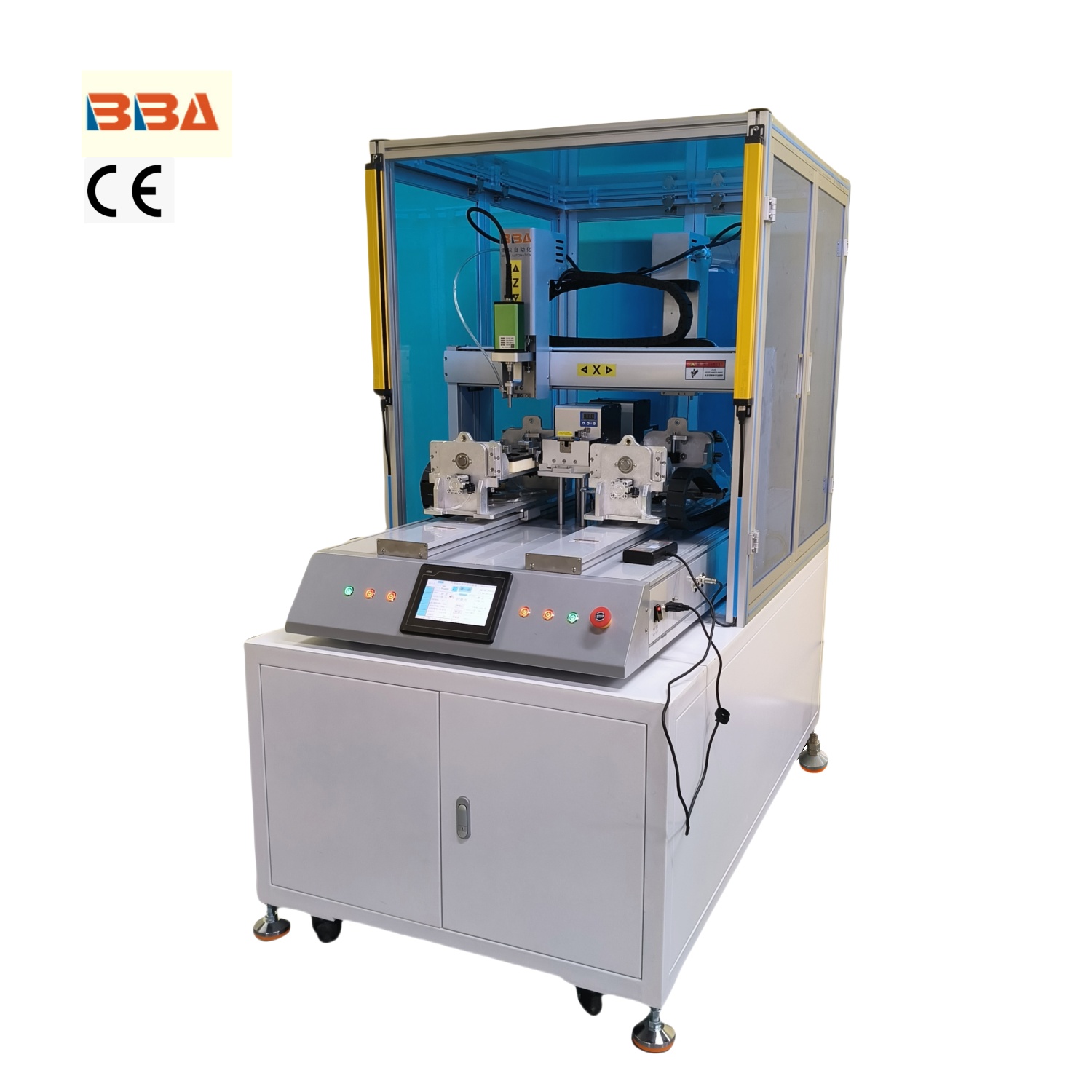

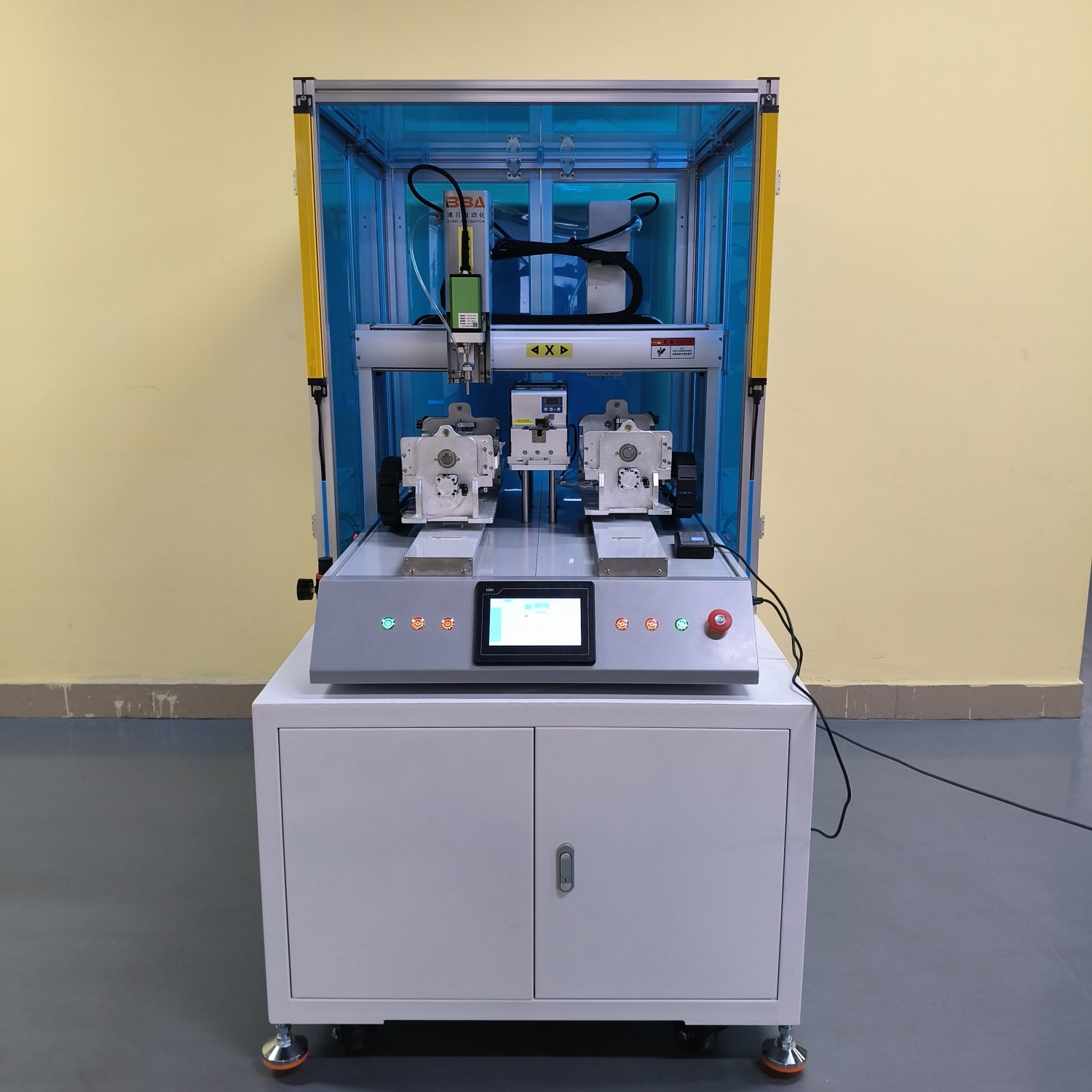

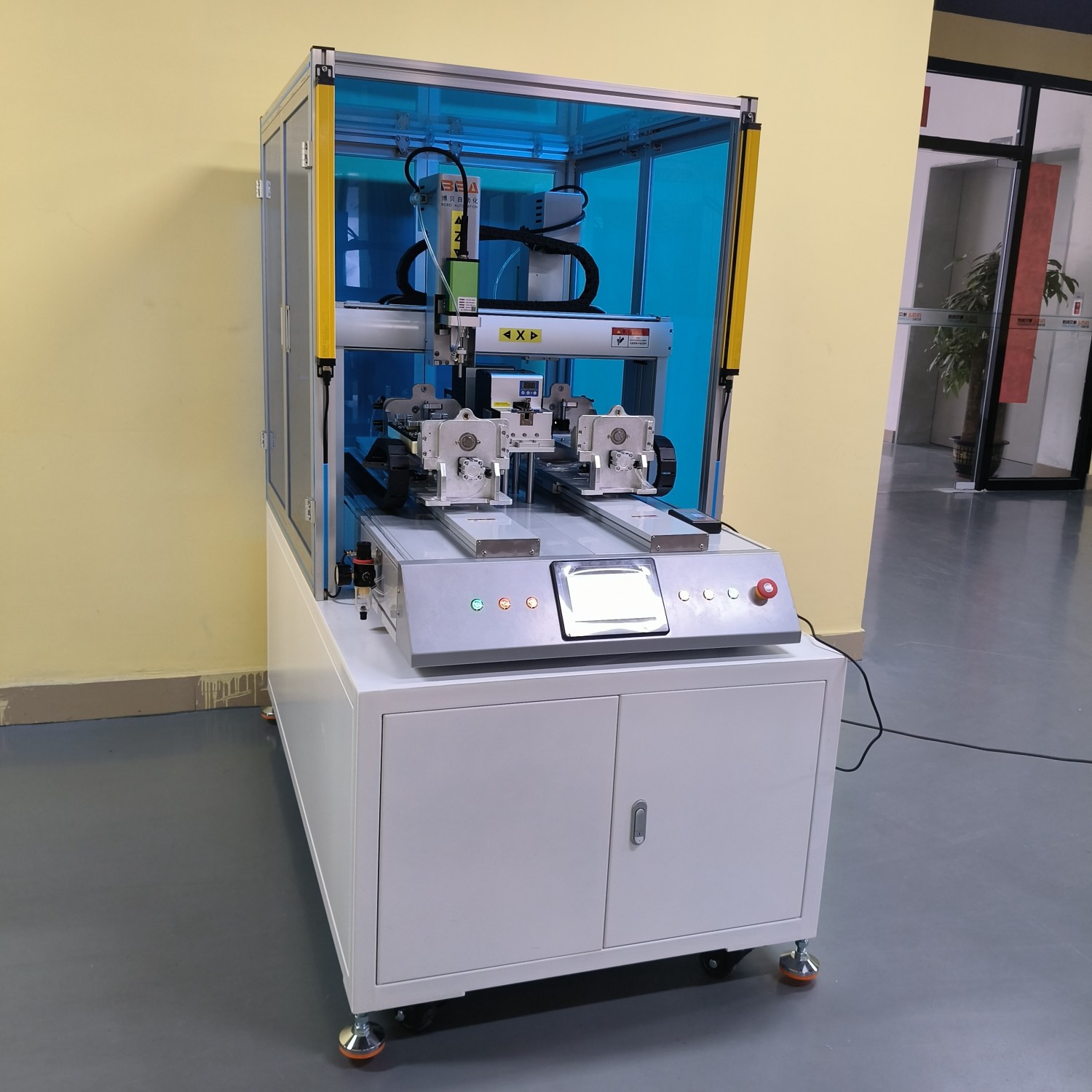

Automatic Servo Screwdriver System M2–M6 for Mobile Phone Assembly Assembly Line

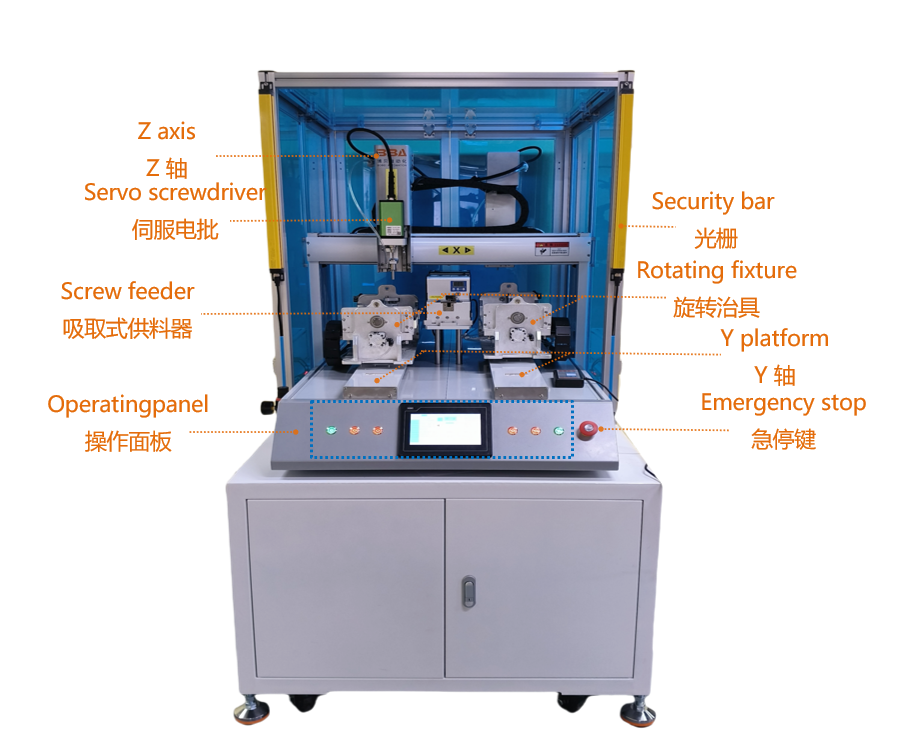

The machine consists of:
– A working table.
– A fixed frame/

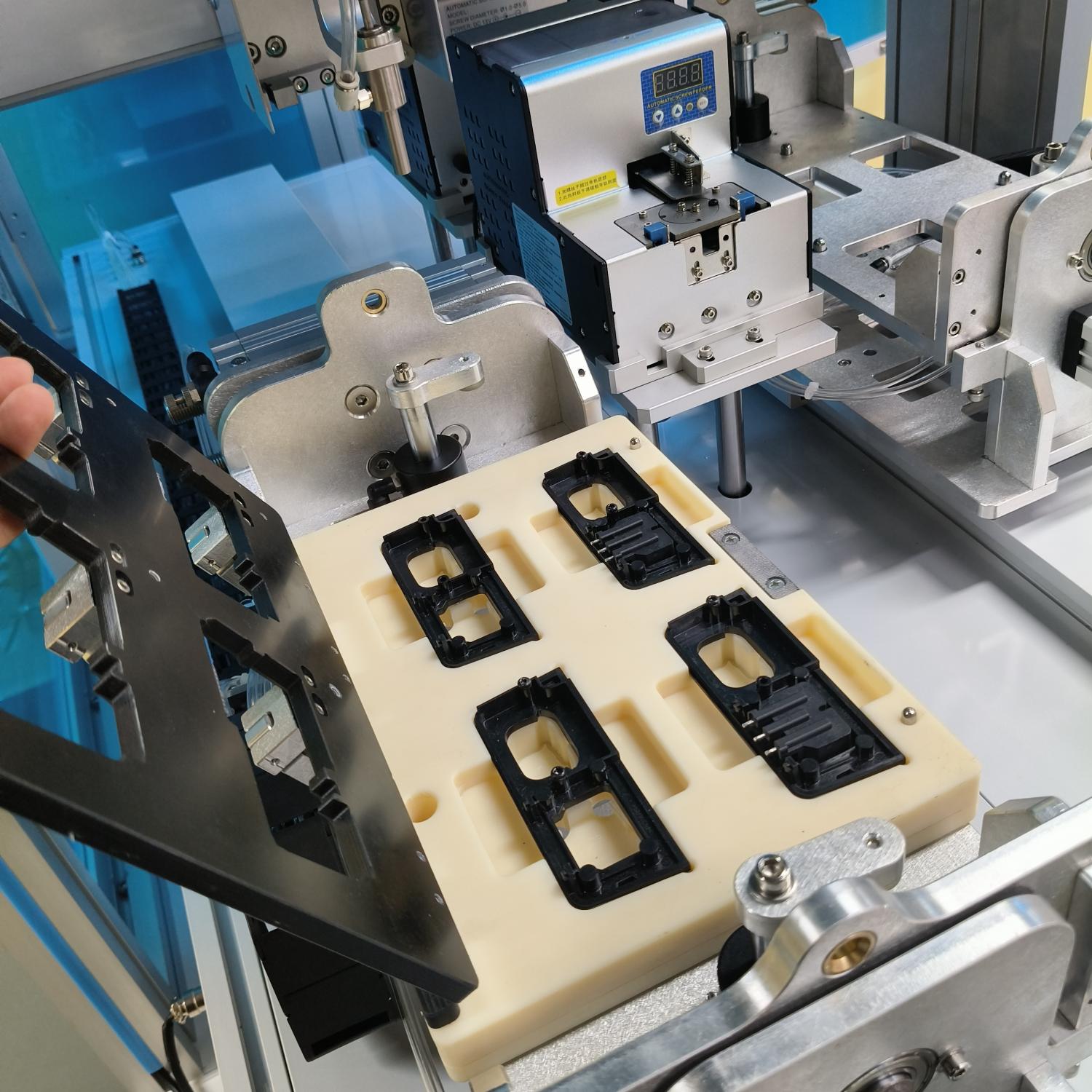

– Two sliding platforms, each with a holder (fixture)
for workpieces. These platforms can move back and
forward along Y axis.
– 1 servomotor screw driver, which rotate screw
driver bits and can move right and left along the X
axis.
– 1 screw driver bit, which can move up and down
along the Z axis, rotating at the same time.
– Motion devices, which can drive the abovementioned parts along X/Y/Z axis.
– An automatic screw feed device.
– Data input sensors.
– A control system.
– A handheld programmer console.
