Best Practices for Using Automatic Threaded Insert machine in Automotive, Aerospace, and PCB Assembly for Durable and Reliable Long-Term Results
This guide shares essential best practices for using automatic threaded insert machines in automotive, aerospace, and PCB assembly. It ensures durable, reliable long-term results, aligns with sector-specific standards, reduces errors, optimizes machine performance, and supports stable production across these critical industries.
Product Description
Best Practices for Using Automatic Threaded Insert machine in Automotive, Aerospace, and PCB Assembly for Durable and Reliable Long-Term Results

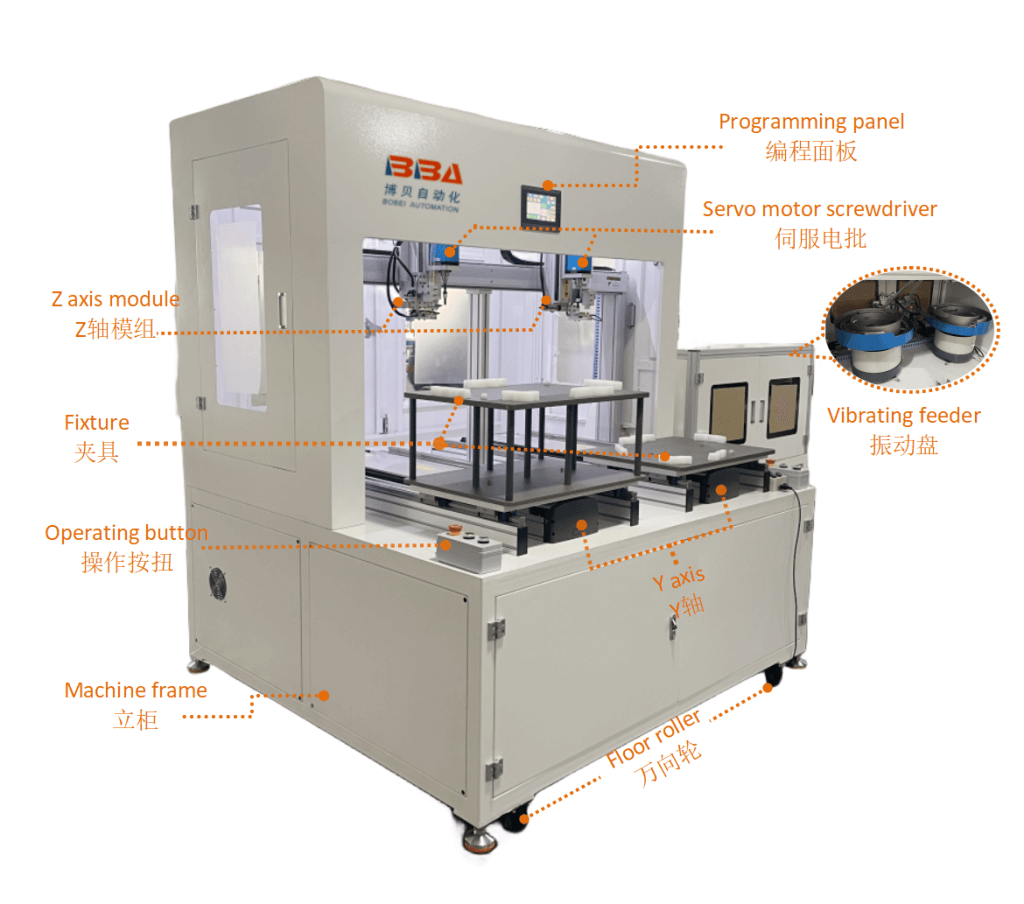

- Automatic screw thread tightening machine can tighten the screw thread into the product automatically and quickly, meanwhile to ensure the quality of the product. Adopting the vibrating feeder and direct vibration track for feeding the screws.
- Using servo motor for screwing and reclaiming, can working in forward and reverse direction.
- After the screw thread are inserted and tightened, the tread tail are automatically retracted.
- The functions of
glue dispensing and depth detection can be added. Also can be performed as double screw thread tightening system.

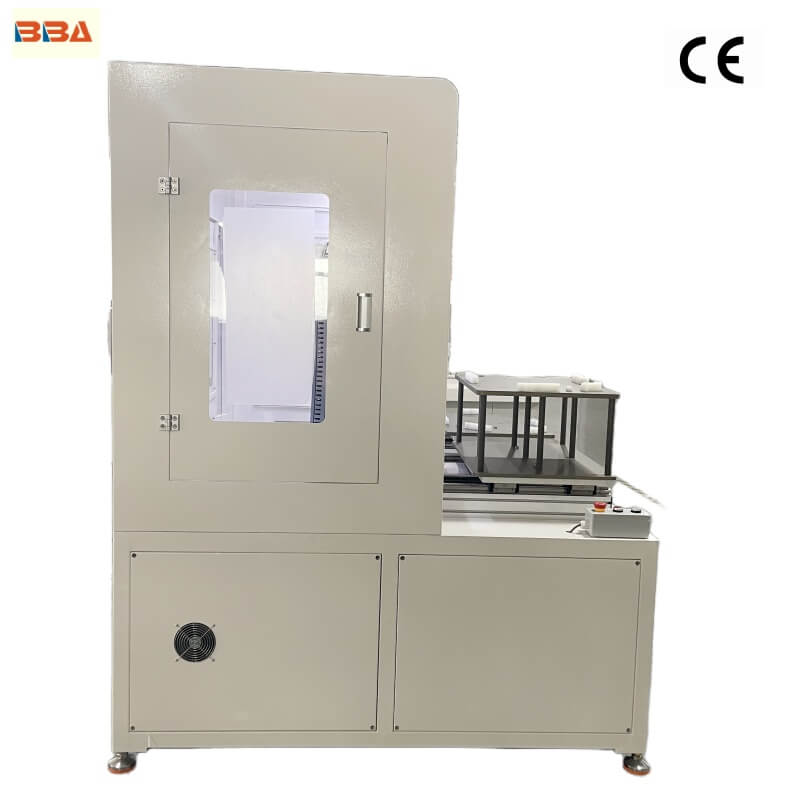

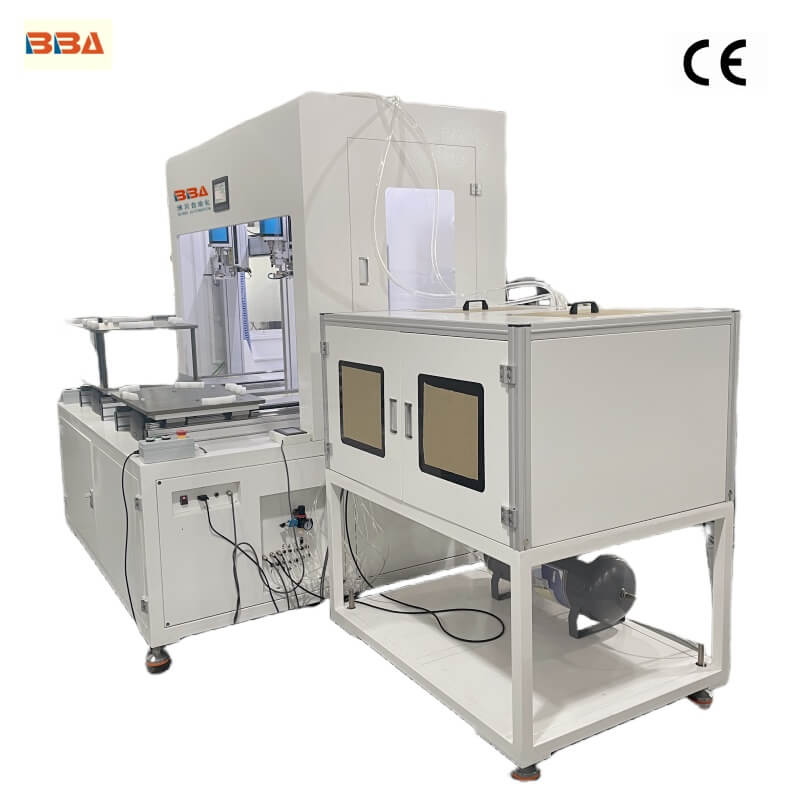

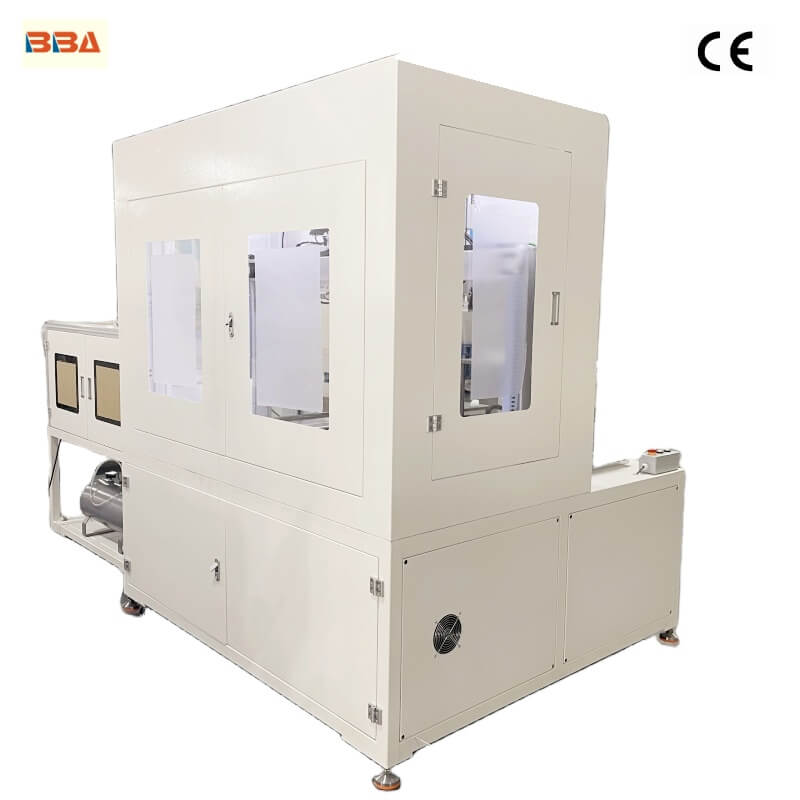

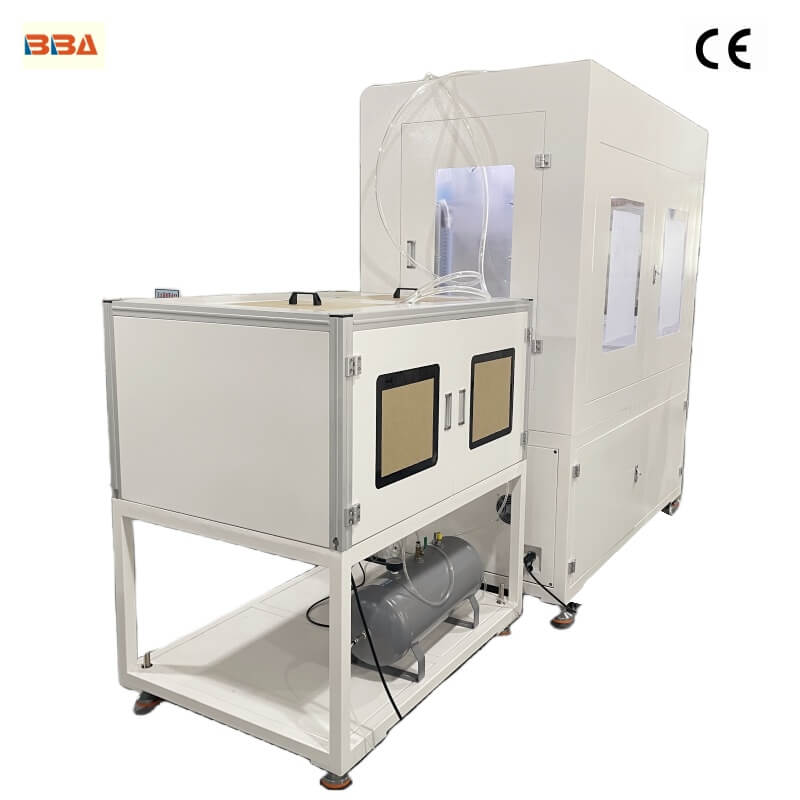

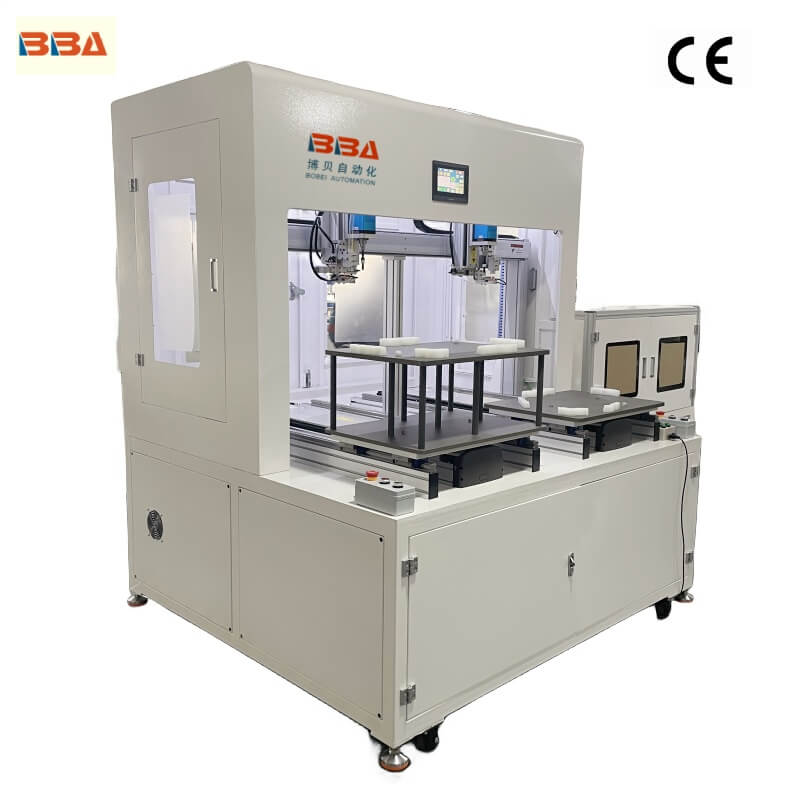

Automatic screw thread tightening machine
| Voltage | AC110/220V 50/60HZ |
| Power | 1000W |
| Stroke | 500*400*400*100mm (X*Y*Z), can be customized |
| Movement speed | 10-500mm/S |
| Position accuracy | ±0.05mm/axis |
| Universal screw thread | M3-M10 |
| Screw thread height | 6-20mm |
| Screw thread material | Copper, Aluminum, Metal, Stainless steel |
| Screw thread type | Self-tapping thread, screw thread, steel thread |

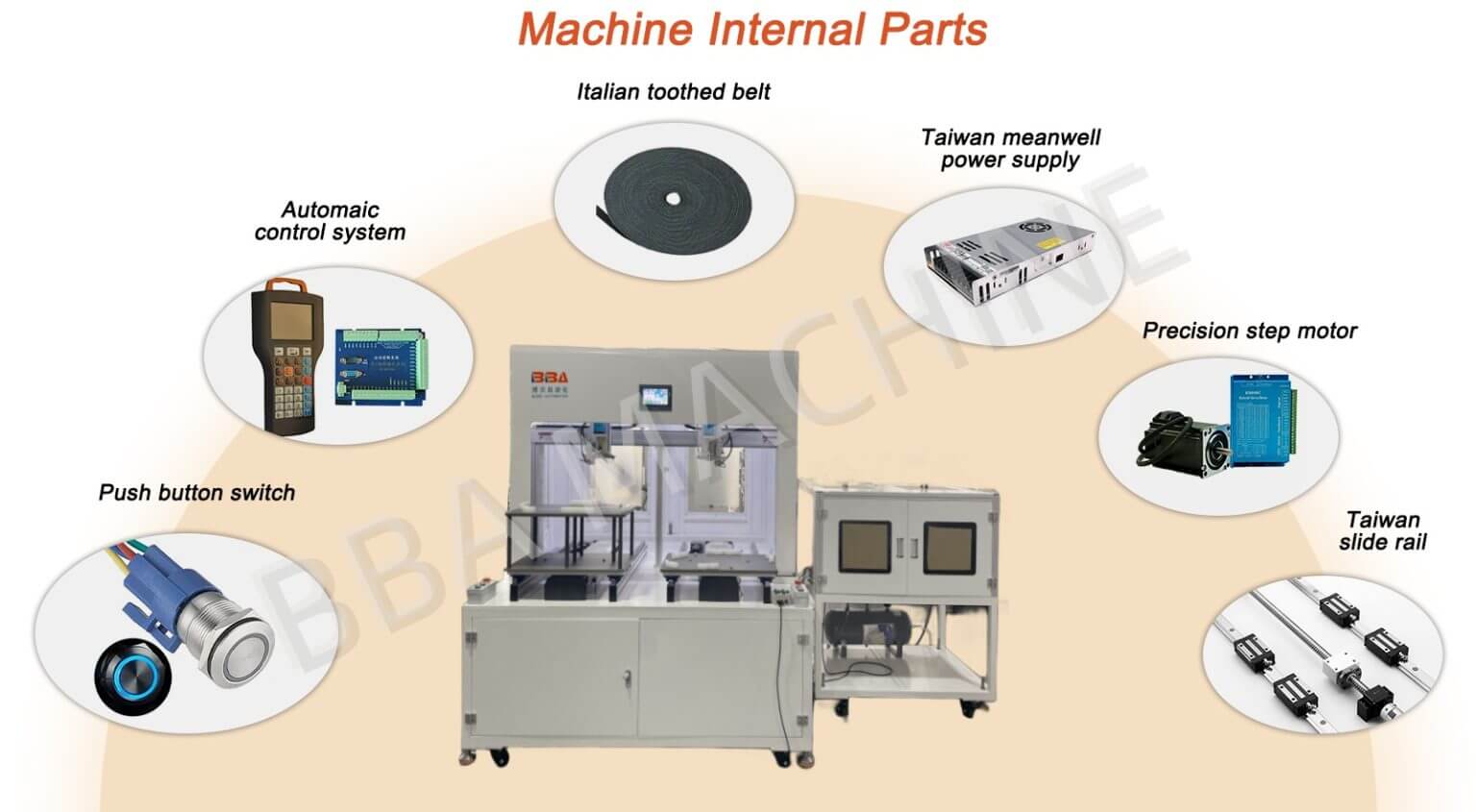

| Transmission mode | Precision toothed belt+guide rail |
| Control panel | PLC+HMI screen |
| Conveying mode | Vibrating plate+direct vibrating track |
| Work efficiency | 6S/pcs (include cutting thread tail), details depends on thread size |
| Air pressure | 0.4-0.6Mpa |
| External port | RS232 |
| Program capacity | 12 groups, 20 points per group; can be customized |
| Work environment | Temperature: 5-40℃ Humidity: 20-90% |
| Weight | 580kg(Subject to the actual product） |
| External machine size (L*W*H) | 1150*1350*1650 mm(Can be customized) |
