Comprehensive Guide to Thread Insert Installation Machine Technology for Engineers, Production Managers, and Industrial Automation Specialists Across Multiple Industries
This guide covers thread insert installation machine tech, tailored for engineers, production managers, and industrial automation specialists across industries. It breaks down core tech details, aids in machine selection, optimizes operational use, and supports skill building for efficient industrial thread installation workflows.
Product Description
Comprehensive Guide to Thread Insert Installation Machine Technology for Engineers, Production Managers, and Industrial Automation Specialists Across Multiple Industries

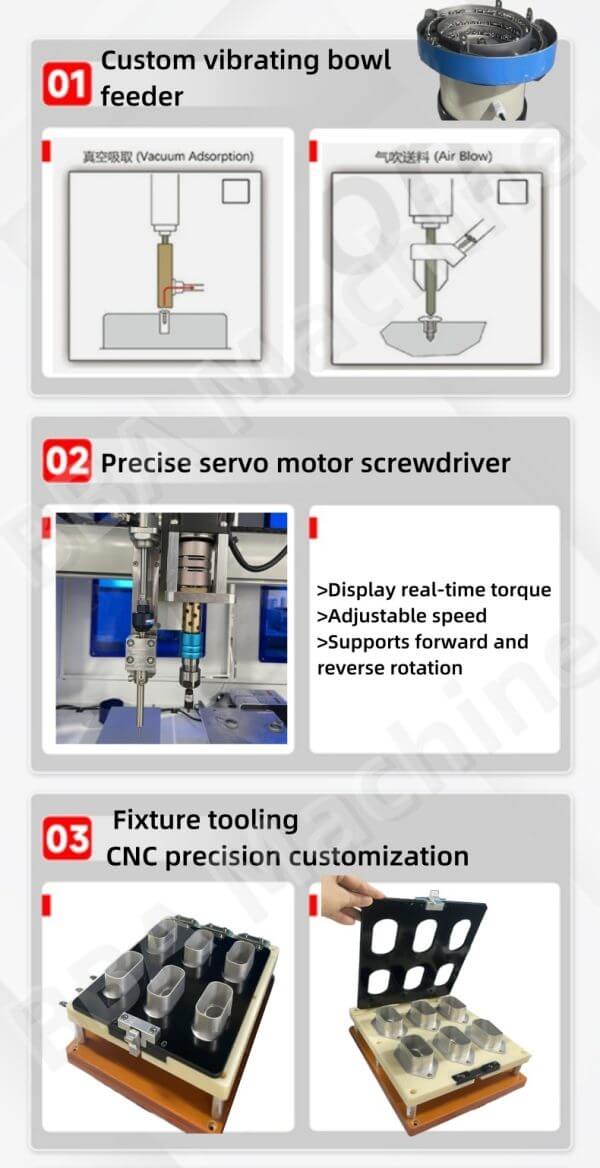

- Automatic screw thread tightening machine can tighten the screw thread into the product automatically and quickly, meanwhile to ensure the quality of the product. Adopting the vibrating feeder and direct vibration track for feeding the screws.

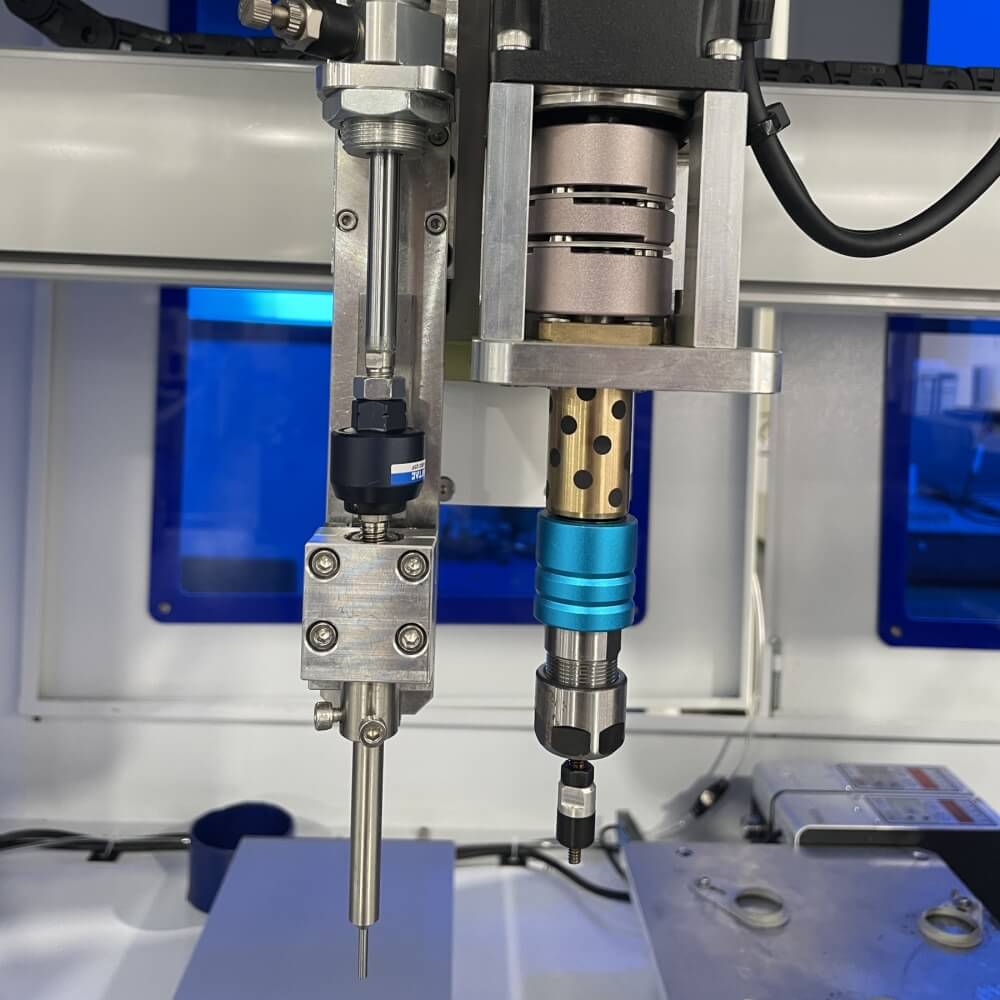

- Using servo motor for screwing and reclaiming, can working in forward and reverse direction.
- After the screw thread are inserted and tightened, the tread tail are automatically retracted.

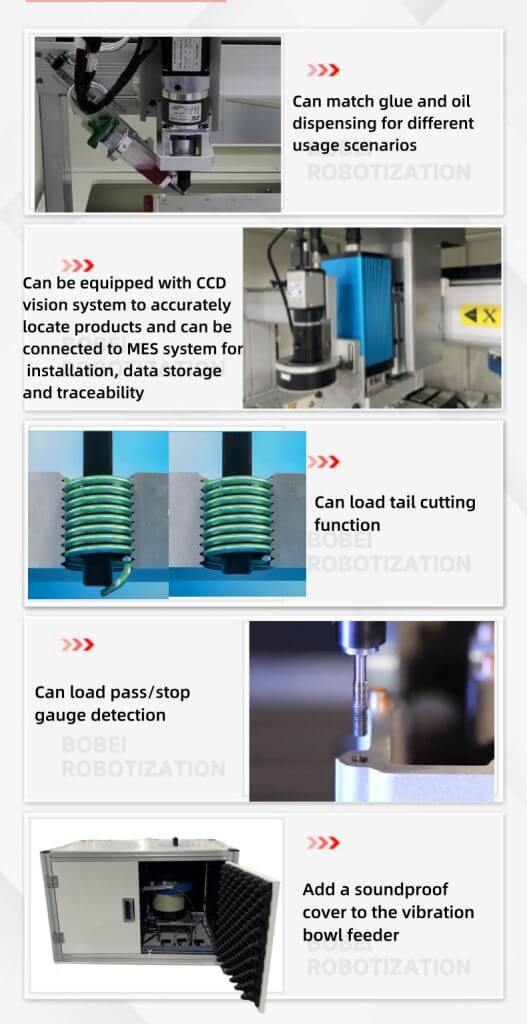

- The functions of
glue dispensing and depth detection can be added. Also can be performed as double screw thread tightening system.

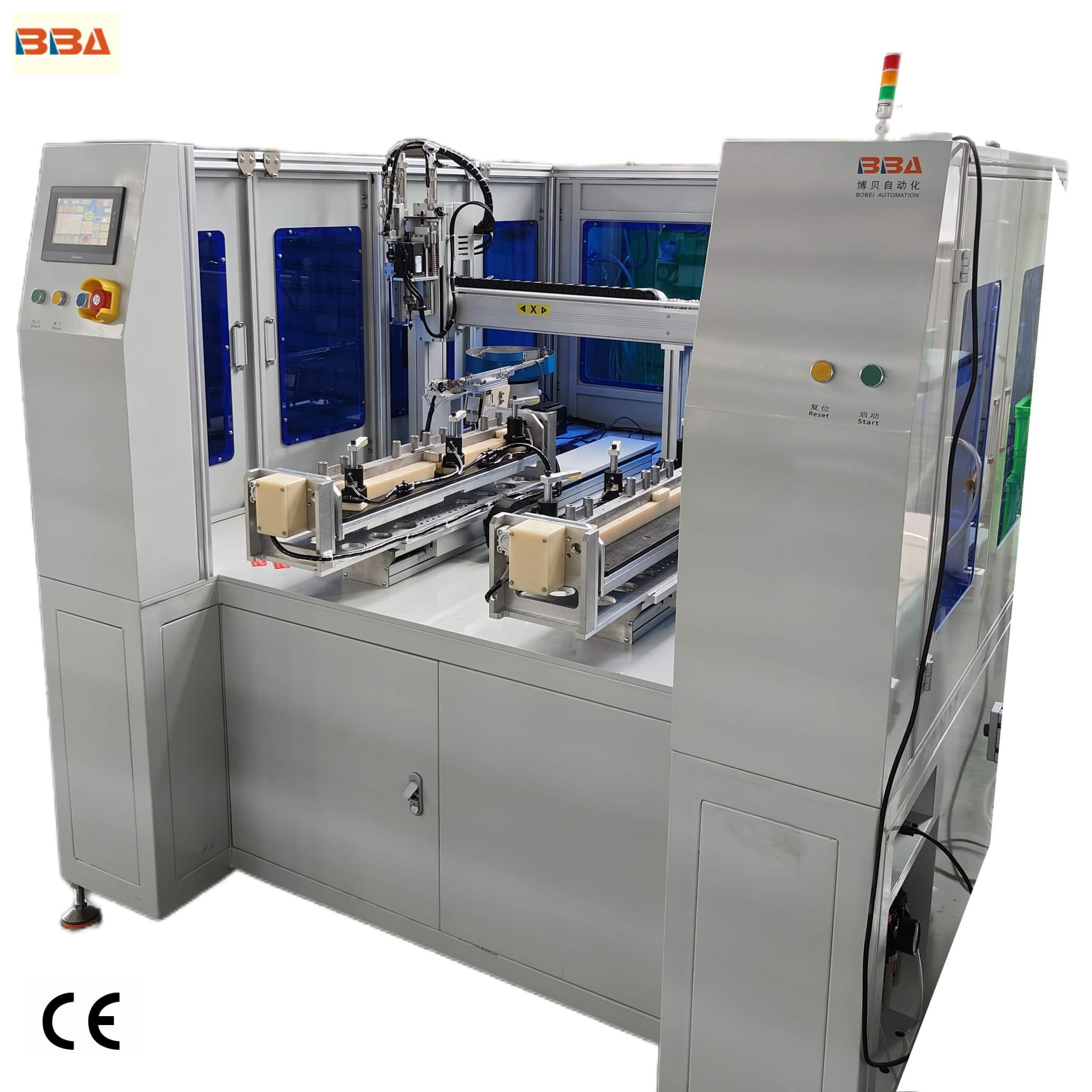

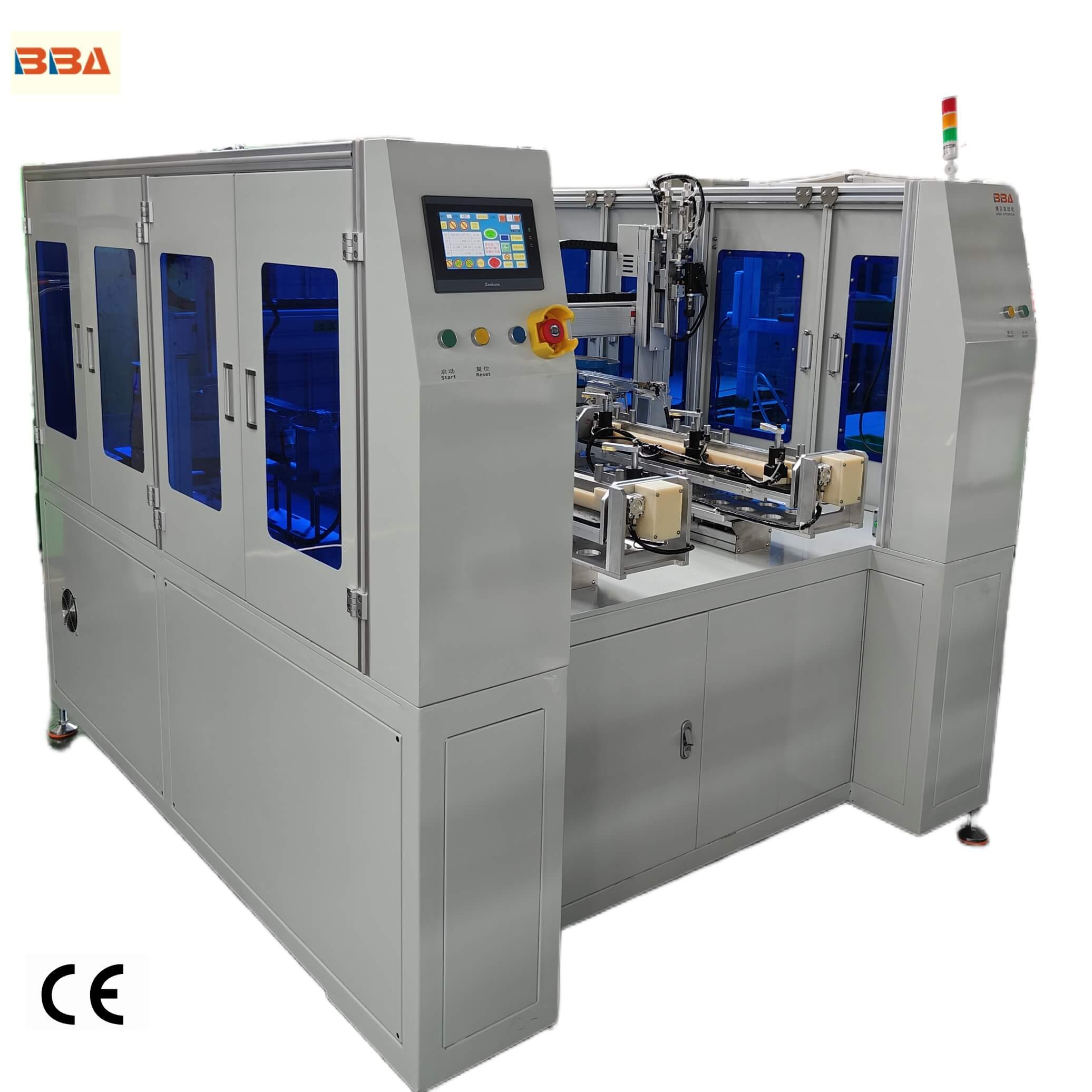

Automatic screw thread tightening machine
| Voltage | AC110/220V 50/60HZ |
| Power | 1000W |
| Stroke | 500*400*400*100mm (X*Y*Z), can be customized |
| Movement speed | 10-500mm/S |
| Position accuracy | ±0.05mm/axis |
| Universal screw thread | M3-M10 |
| Screw thread height | 6-20mm |
| Screw thread material | Copper, Aluminum, Metal, Stainless steel |
| Screw thread type | Self-tapping thread, screw thread, steel thread |

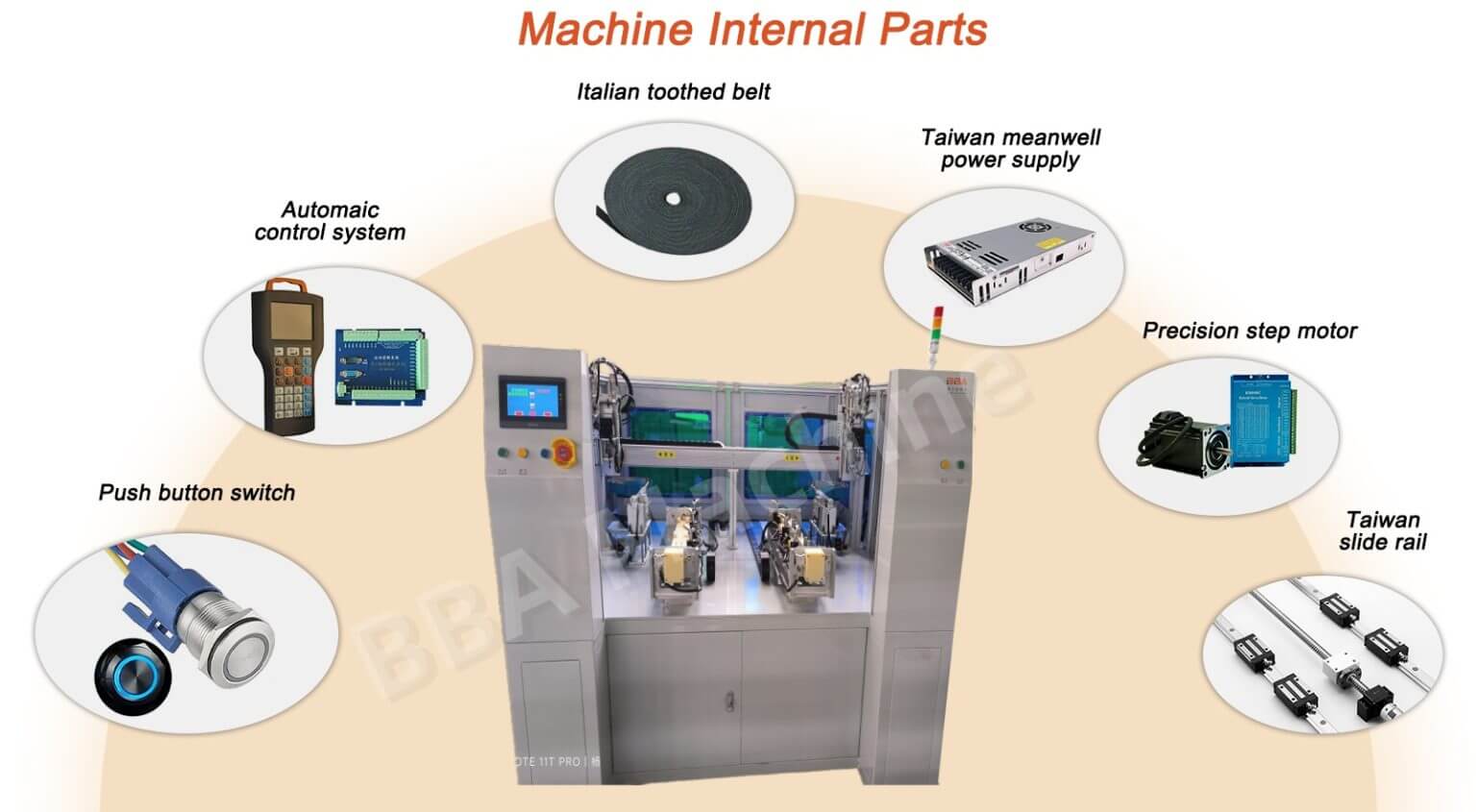

| Transmission mode | Precision toothed belt+guide rail |

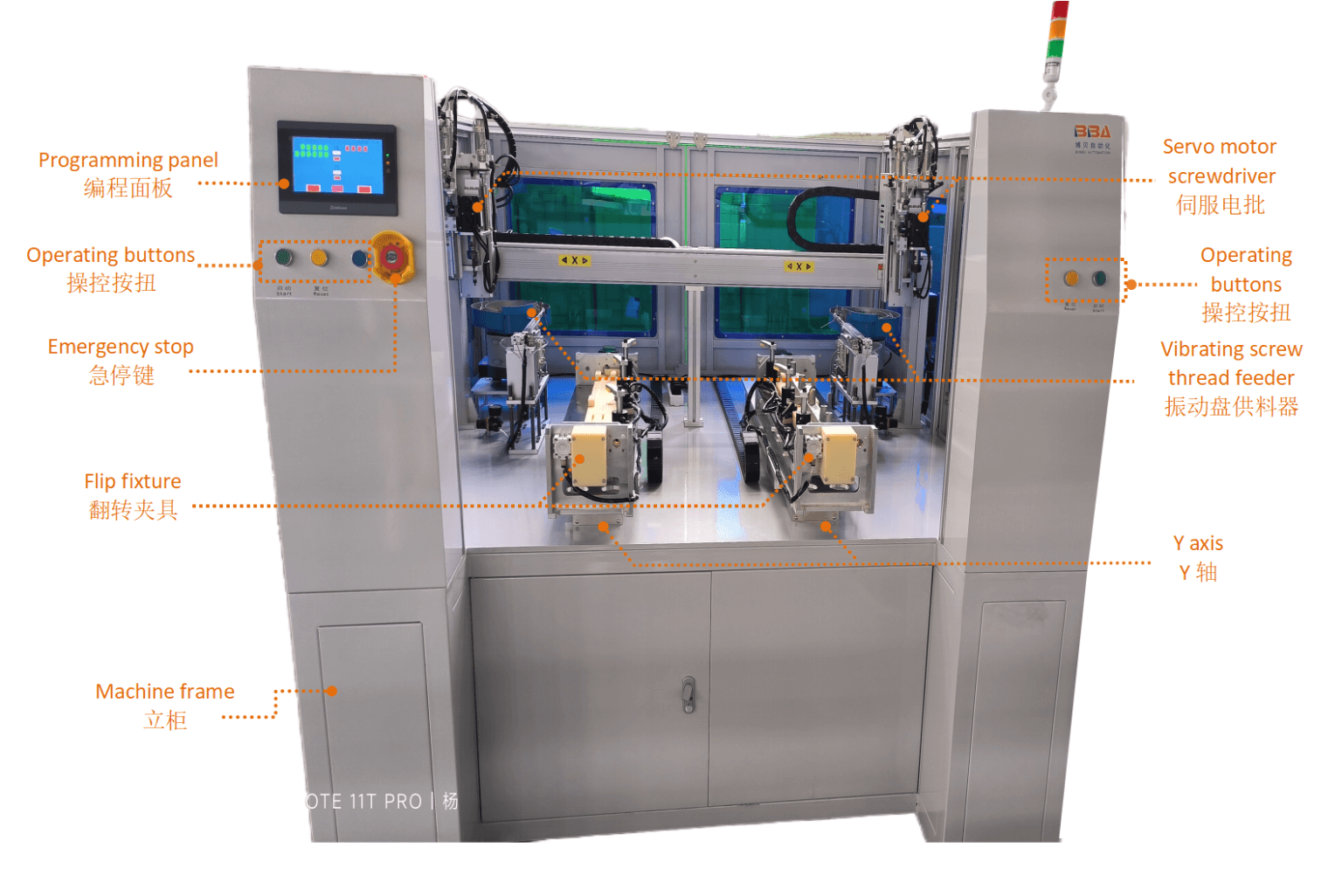

| Control panel | PLC+HMI screen |
| Conveying mode | Vibrating plate+direct vibrating track |
| Work efficiency | 6S/pcs (include cutting thread tail), details depends on thread size |
| Air pressure | 0.4-0.6Mpa |
| External port | RS232 |
| Program capacity | 12 groups, 20 points per group; can be customized |
| Work environment | Temperature: 5-40℃ Humidity: 20-90% |
| Weight | 580kg(Subject to the actual product） |
| External machine size (L*W*H) | 1150*1350*1650 mm(Can be customized) |
Product Description

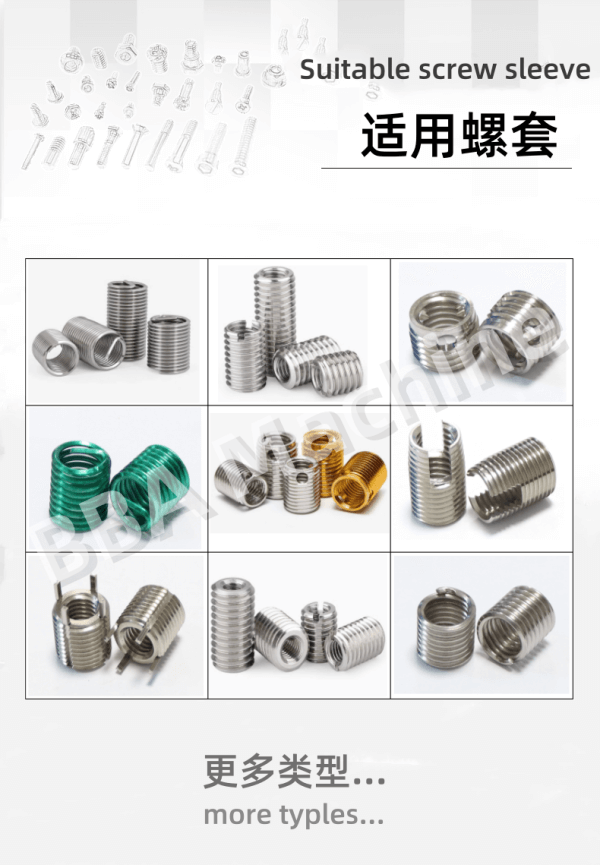

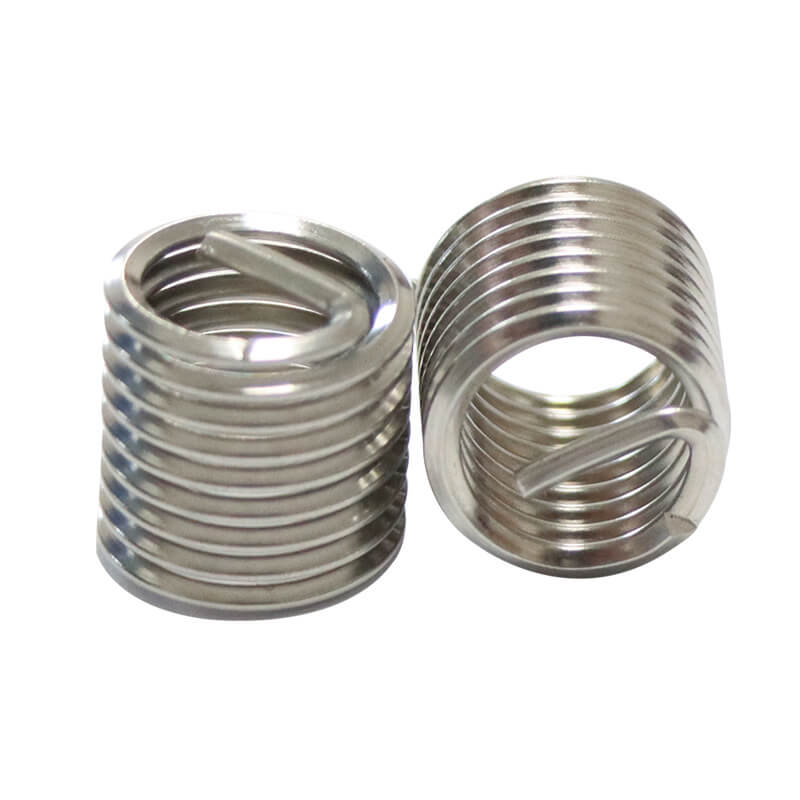

Applicable screws

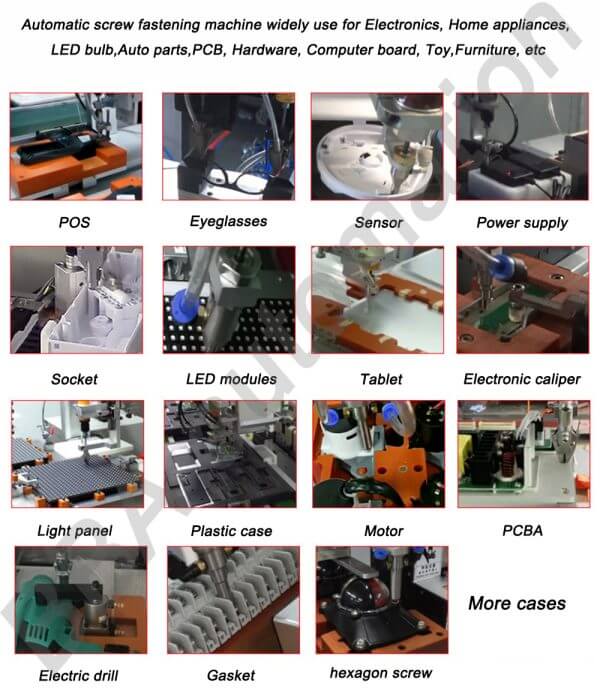

Customer case
Package
