High Efficiency XYZ Axis automatic glue dispensing robot with Silicone Glue Compatible used in Mobile Phone Manufacturing
This high-efficiency XYZ axis automatic glue dispensing robot, compatible with silicone glue, is designed for mobile phone manufacturing. It ensures precise, automated silicone glue application with three-axis movement, enhancing assembly accuracy and productivity in smartphone production.
Product Description
High Efficiency XYZ Axis automatic glue dispensing robot with Silicone Glue Compatible used in Mobile Phone Manufacturing
Full Series of BBA Dispensing machinery
| Model | BBA-331DJ | BBA-5331DJ | BBA-6441DJ | CUSTOMIZED | ||||
| (Single Y platform) | (Double Y platform) | (Dual solder feeding systems) | ||||||
| Power supply | AC 110/220V 50/60HZ | |||||||
| Stroke | X | 300mm | X | 500mm | X1/X2 | 600mm | To order | |
| Y | 300mm | Y1/Y2 | 300mm | Y1/Y2 | 400mm | |||
| Z | 100mm | Z | 100mm | Z | 100mm | |||
| Maximum Load Weight | 8KG (for work platform) | To order | ||||||
| Running track | Dotted, line, arcs and irregular paths | |||||||
| Moving speed | 10-800mm/s | |||||||
| Air pressure | 0.5-0.7MPa | |||||||
| Position accuracy | ±0.05mm/axis | |||||||
| Program capacity | 999 groups/1000 points per group | |||||||

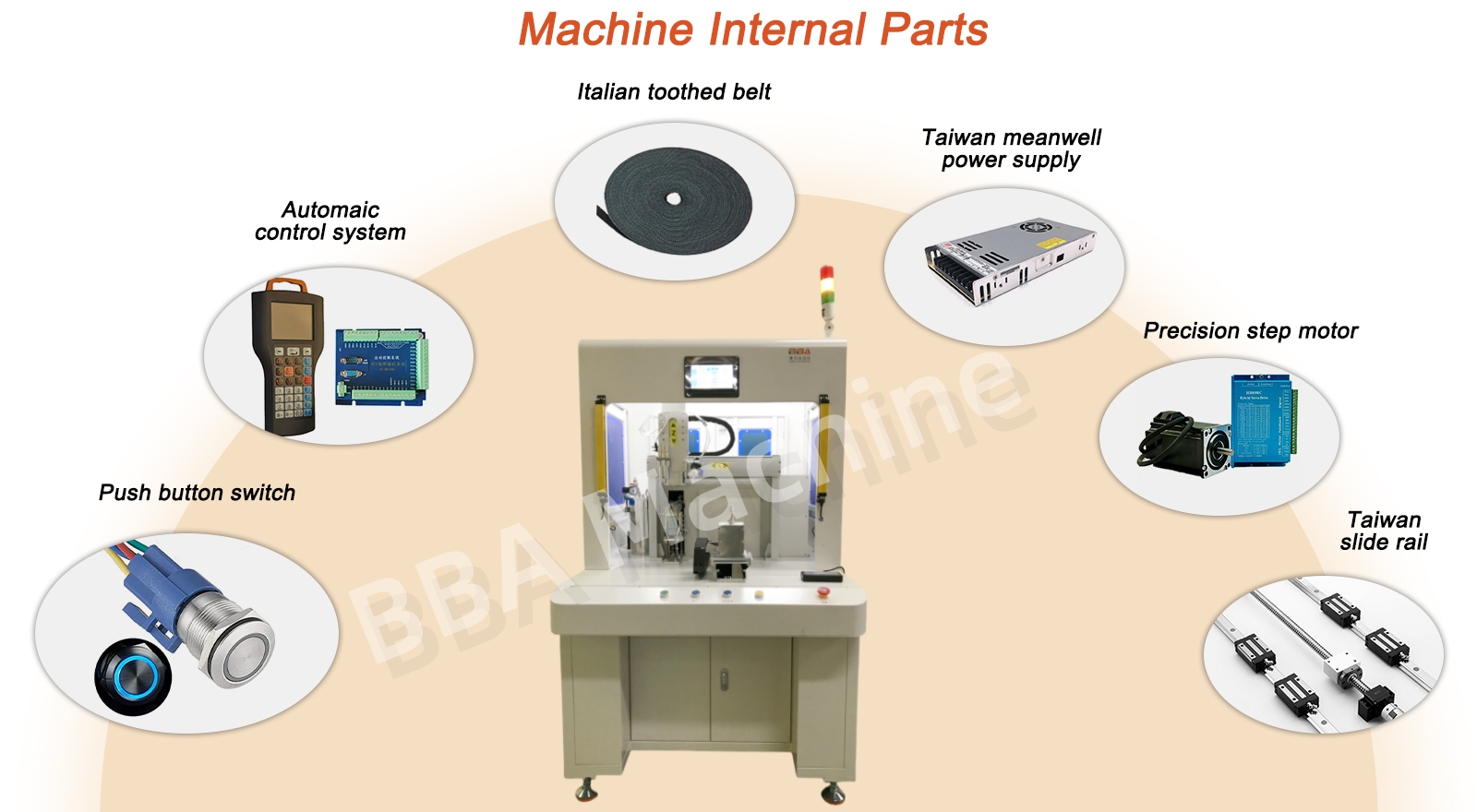

| Motor system | Micro Precision Stepping Motor | |||||||
| Transmission mode | Precision toothed belt+ guide rail | |||||||
|
0.01ml | |||||||
| Control panel | Handheld Teaching pendant with display screen | |||||||
| Work efficiency | 1.0~1.2s/point | |||||||
| Work environment | Temperature: 5-50ºC Humidity: 20-90% | |||||||
| Weight | 60kg | 90kg | 120kg | To order | ||||
| External Machine Size(L*W*H) | 700*630*700mm | 820*730*700mm | 920*730*700mm | To order | ||||
