BBA Automatic glue dispensing robot Inline style with Cold Glue Applicator and AB Glue Mixer for Labeling Process
This BBA inline automatic glue dispensing robot integrates a cold glue applicator and AB glue mixer for labeling processes. It ensures precise, automated adhesive mixing and application, optimizing efficiency in industrial labeling with reliable bond strength.
Product Description
BBA Automatic glue dispensing robot Inline style with Cold Glue Applicator and AB Glue Mixer for Labeling Process
Full Series of BBA Dispensing machinery
| Model | BBA-331DJ | BBA-5331DJ | BBA-6441DJ | CUSTOMIZED | ||||
| (Single Y platform) | (Double Y platform) | (Dual solder feeding systems) | ||||||
| Power supply | AC 110/220V 50/60HZ | |||||||
| Stroke | X | 300mm | X | 500mm | X1/X2 | 600mm | To order | |
| Y | 300mm | Y1/Y2 | 300mm | Y1/Y2 | 400mm | |||
| Z | 100mm | Z | 100mm | Z | 100mm | |||
| Maximum Load Weight | 8KG (for work platform) | To order | ||||||
| Running track | Dotted, line, arcs and irregular paths | |||||||
| Moving speed | 10-800mm/s | |||||||
| Air pressure | 0.5-0.7MPa | |||||||
| Position accuracy | ±0.05mm/axis | |||||||
| Program capacity | 999 groups/1000 points per group | |||||||

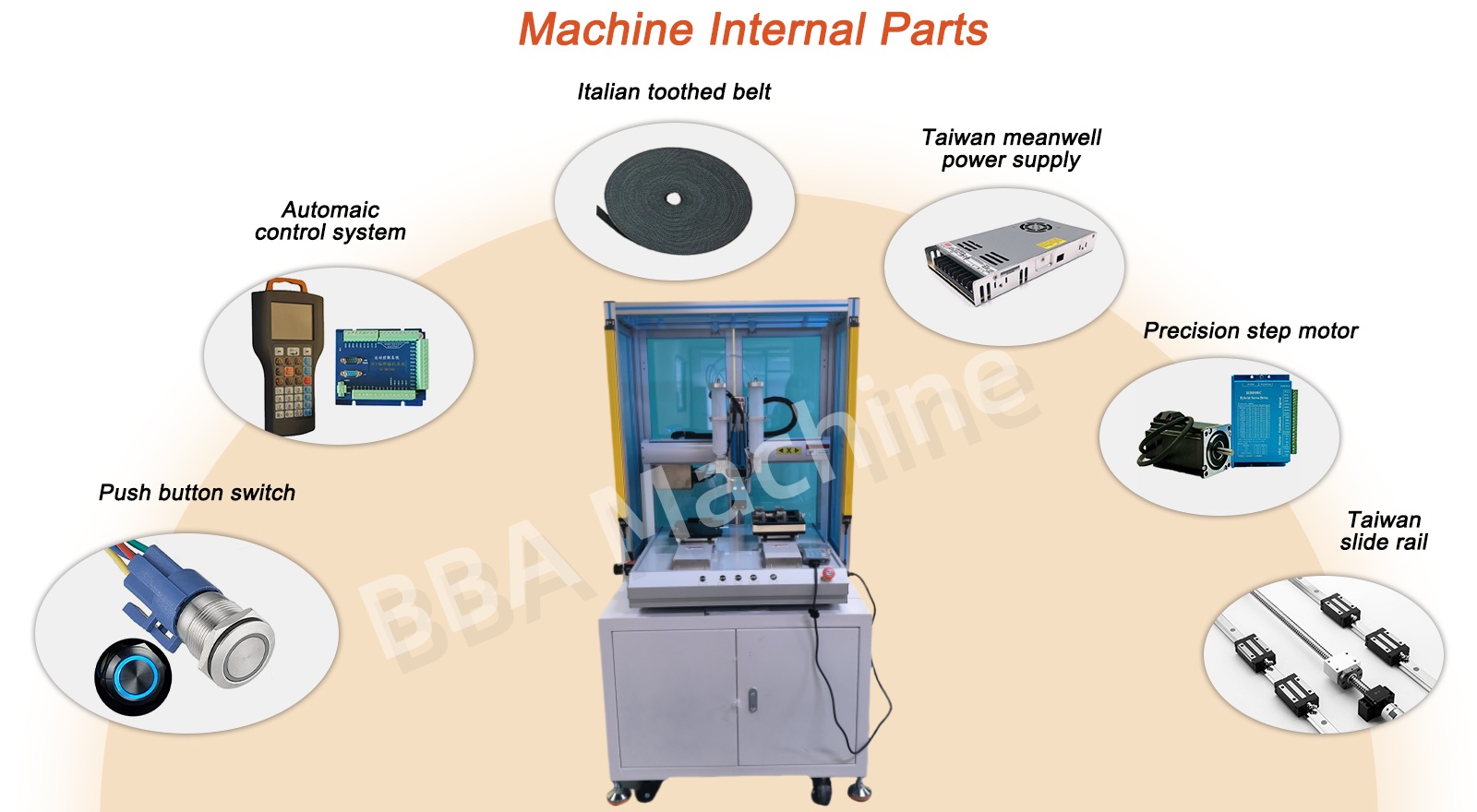

| Motor system | Micro Precision Stepping Motor | |||||||
| Transmission mode | Precision toothed belt+ guide rail | |||||||
|
0.01ml | |||||||

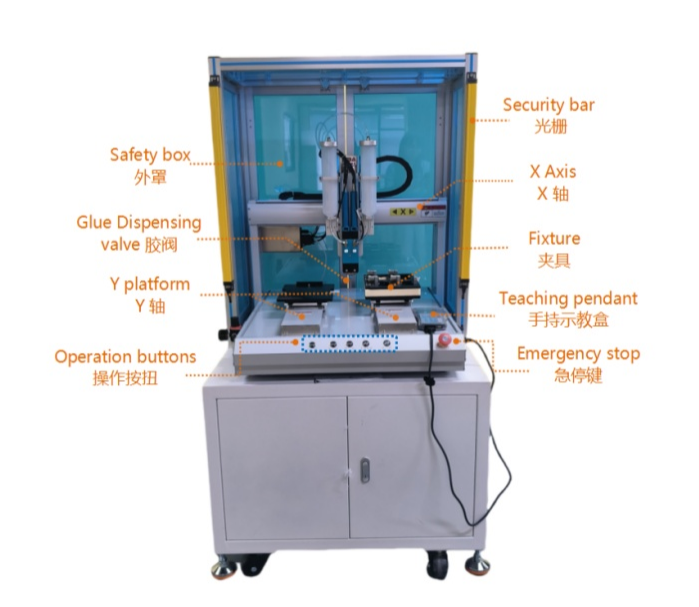

| Control panel | Handheld Teaching pendant with display screen | |||||||
| Work efficiency | 1.0~1.2s/point | |||||||
| Work environment | Temperature: 5-50ºC Humidity: 20-90% | |||||||
| Weight | 60kg | 90kg | 120kg | To order | ||||
| External Machine Size(L*W*H) | 700*630*700mm | 820*730*700mm | 920*730*700mm | To order | ||||
