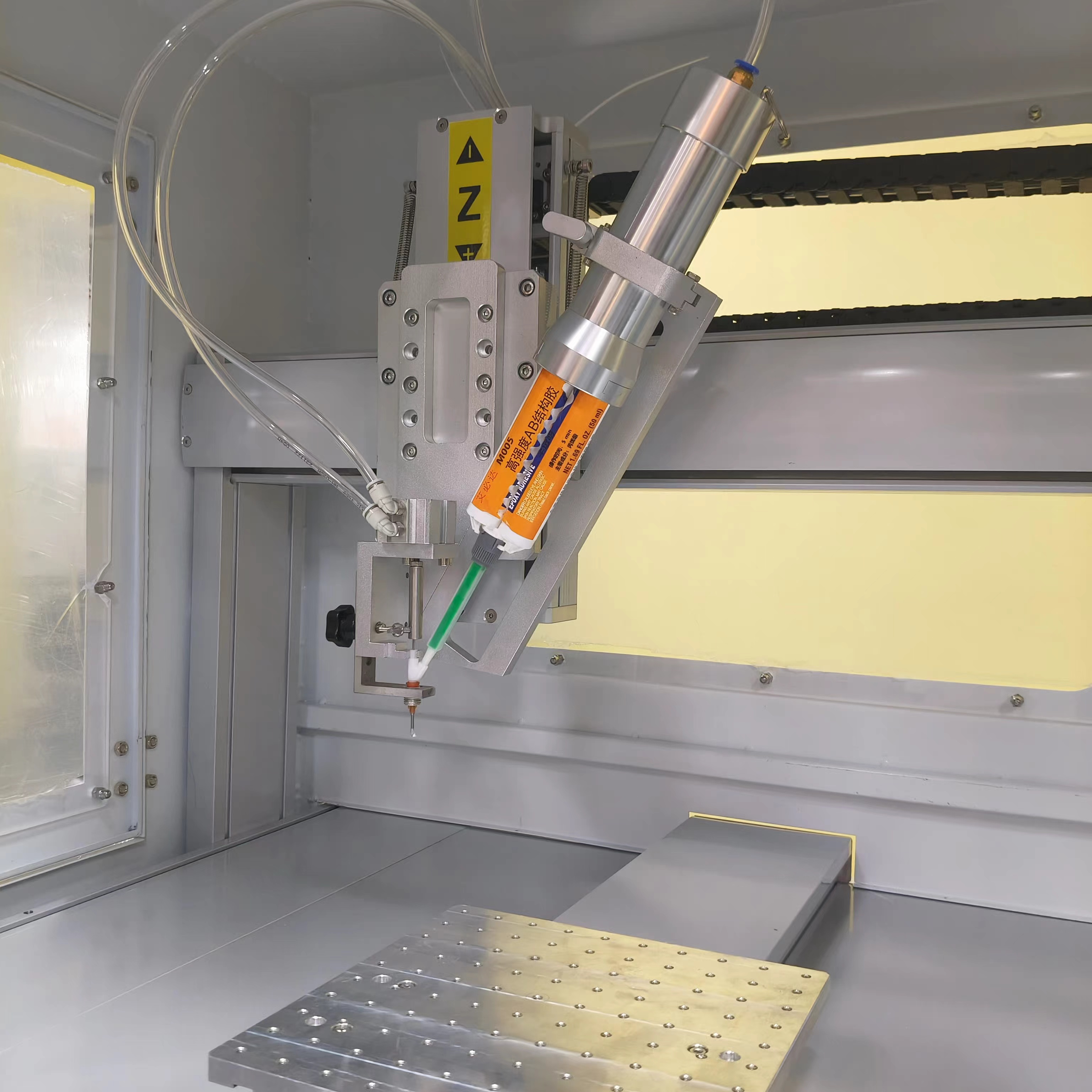

High Efficiency Desktop adhesive dispensing machine with High Precision Nozzle used in Mobile Phone Manufacturing
This high-efficiency desktop adhesive dispensing machine with a high-precision nozzle is tailored for mobile phone manufacturing. It ensures precise, reliable adhesive application, ideal for desktop use in smartphone production to enhance assembly accuracy and productivity.
Product Description

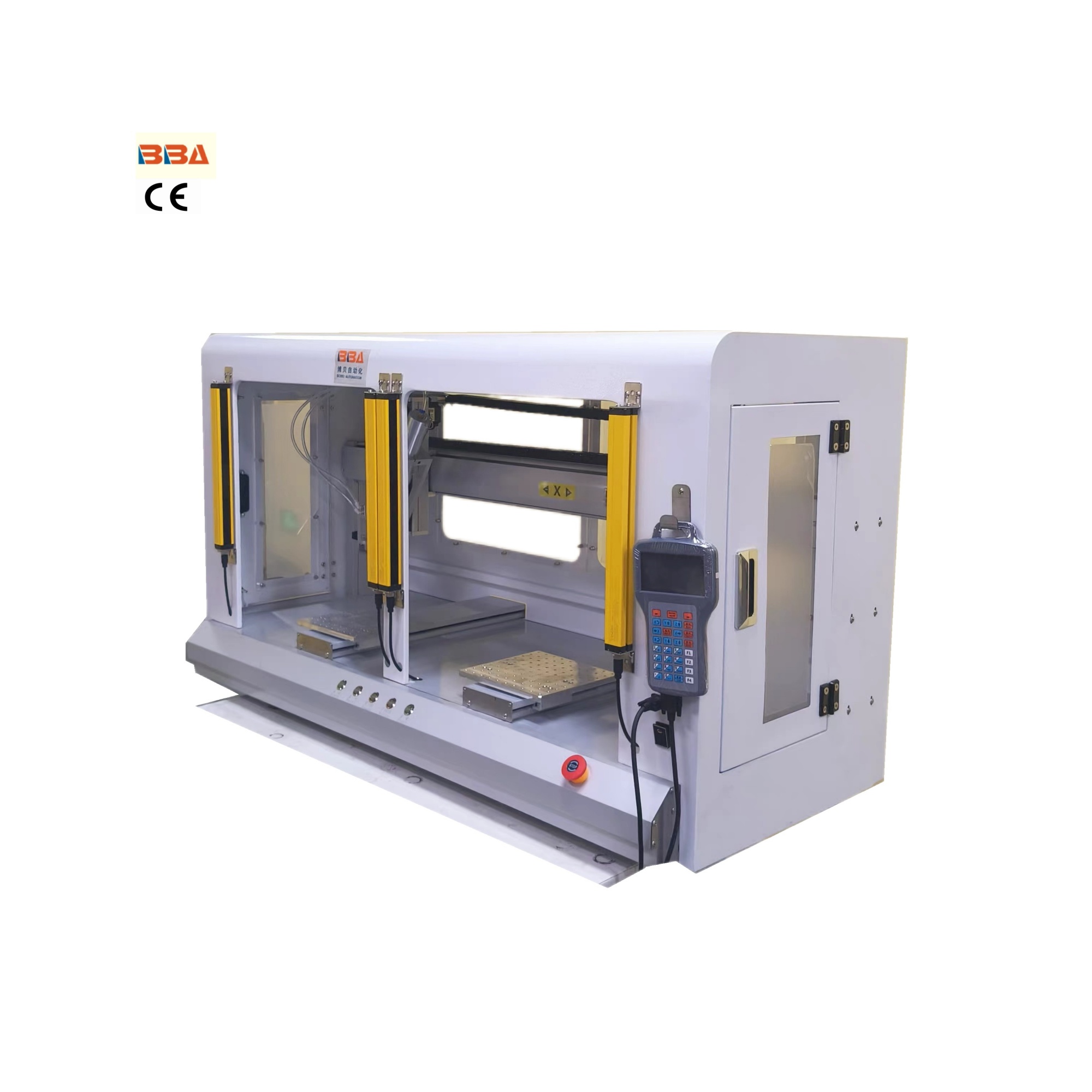

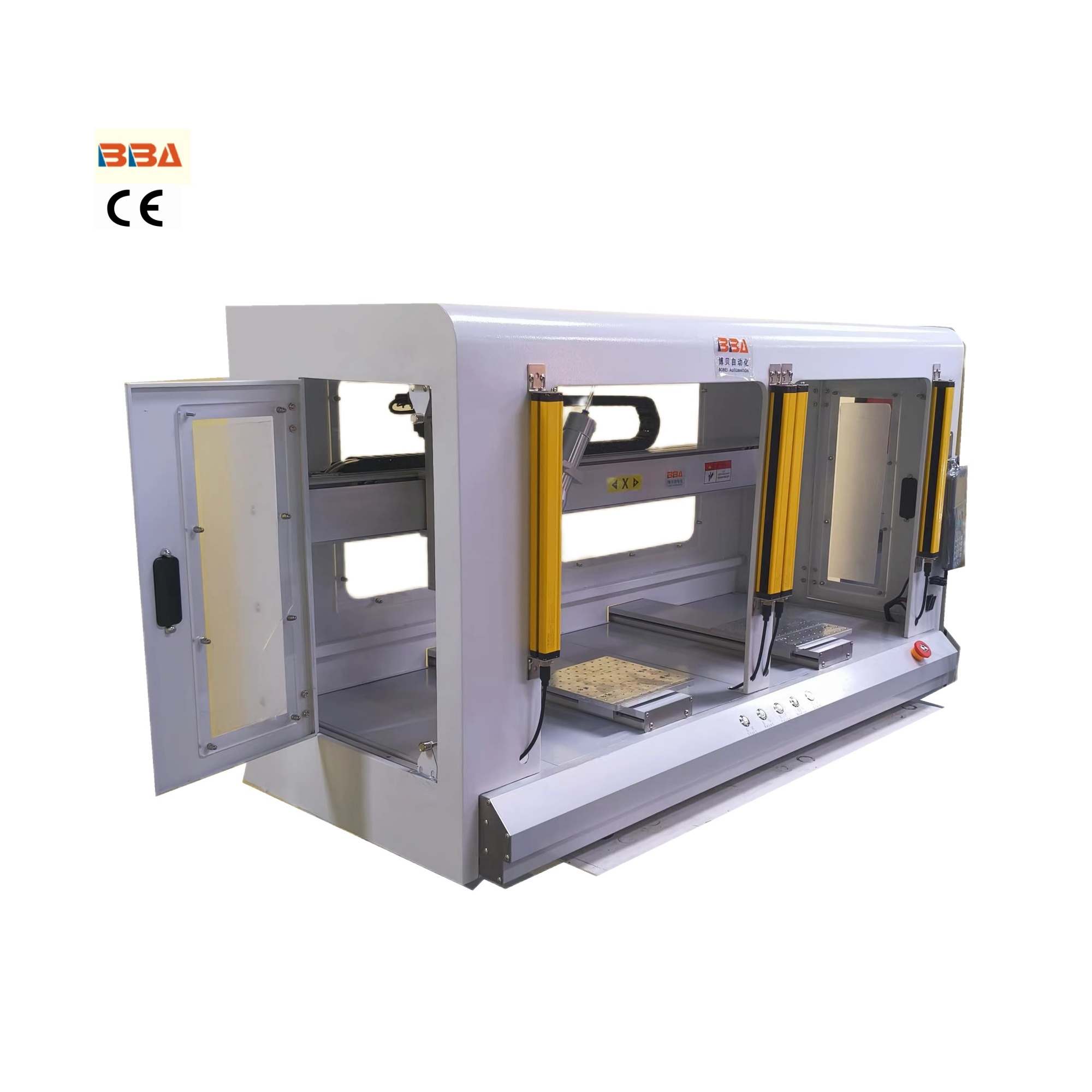

High Efficiency Desktop adhesive dispensing machine with High Precision Nozzle used in Mobile Phone Manufacturing
Full Series of BBA Dispensing machinery
| Model | BBA-331DJ | BBA-5331DJ | BBA-6441DJ | CUSTOMIZED | ||||
| (Single Y platform) | (Double Y platform) | (Dual solder feeding systems) | ||||||
| Power supply | AC 110/220V 50/60HZ | |||||||
| Stroke | X | 300mm | X | 500mm | X1/X2 | 600mm | To order | |
| Y | 300mm | Y1/Y2 | 300mm | Y1/Y2 | 400mm | |||
| Z | 100mm | Z | 100mm | Z | 100mm | |||
| Maximum Load Weight | 8KG (for work platform) | To order | ||||||
| Running track | Dotted, line, arcs and irregular paths | |||||||
| Moving speed | 10-800mm/s | |||||||
| Air pressure | 0.5-0.7MPa | |||||||
| Position accuracy | ±0.05mm/axis | |||||||
| Program capacity | 999 groups/1000 points per group | |||||||

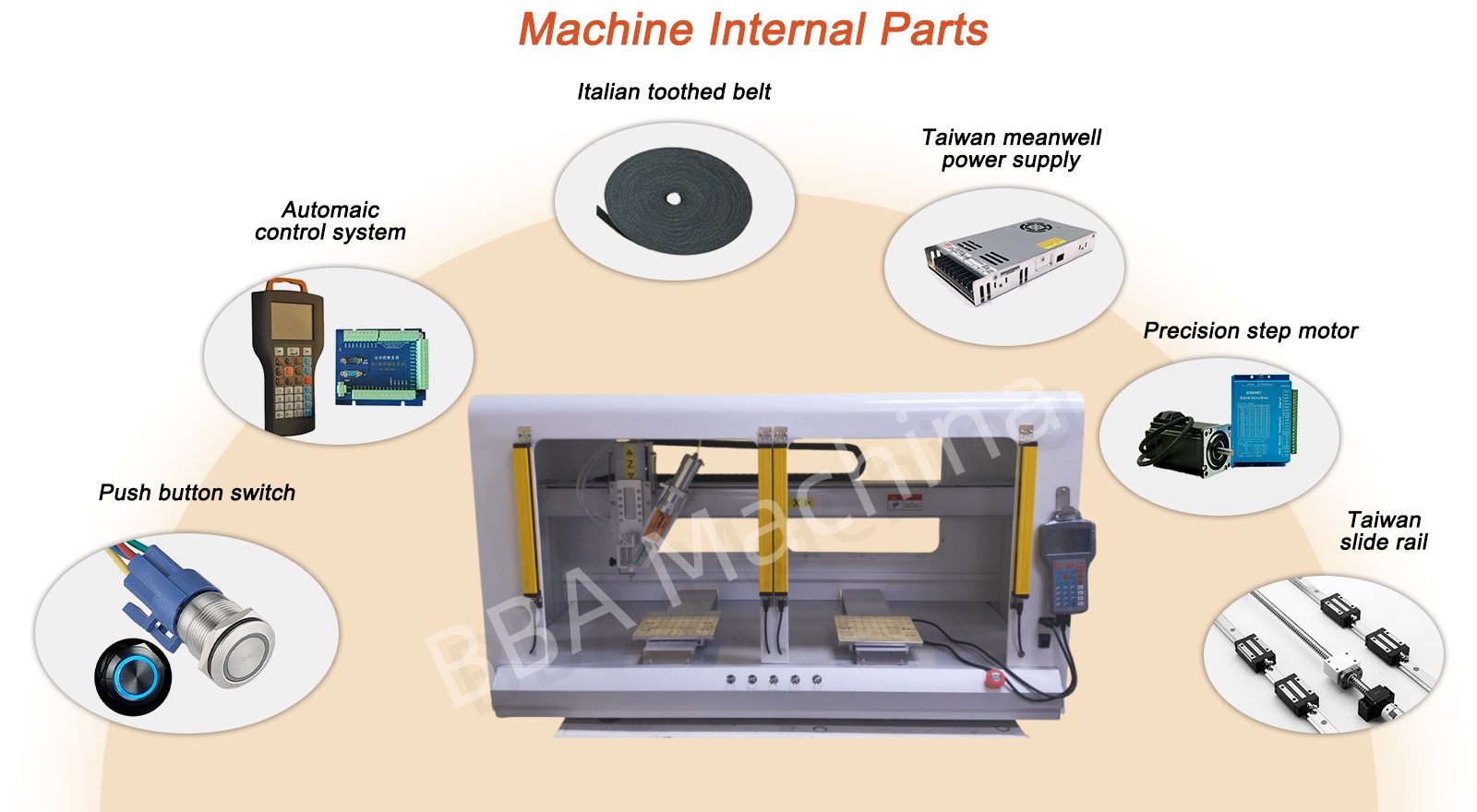

| Motor system | Micro Precision Stepping Motor | |||||||
| Transmission mode | Precision toothed belt+ guide rail | |||||||
|
0.01ml | |||||||

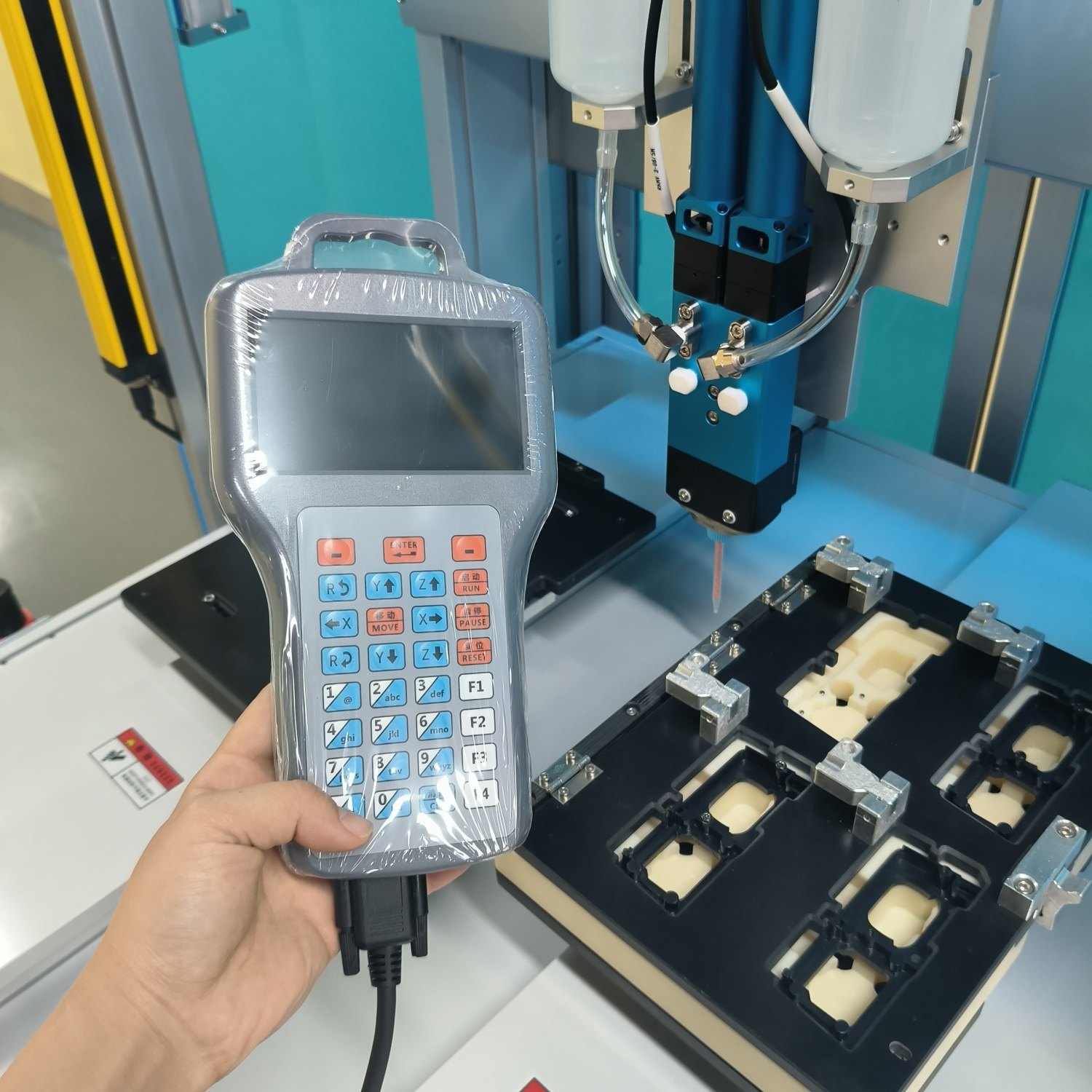

| Control panel | Handheld Teaching pendant with display screen | |||||||
| Work efficiency | 1.0~1.2s/point | |||||||
| Work environment | Temperature: 5-50ºC Humidity: 20-90% | |||||||
| Weight | 60kg | 90kg | 120kg | To order | ||||
| External Machine Size(L*W*H) | 700*630*700mm | 820*730*700mm | 920*730*700mm | To order | ||||
