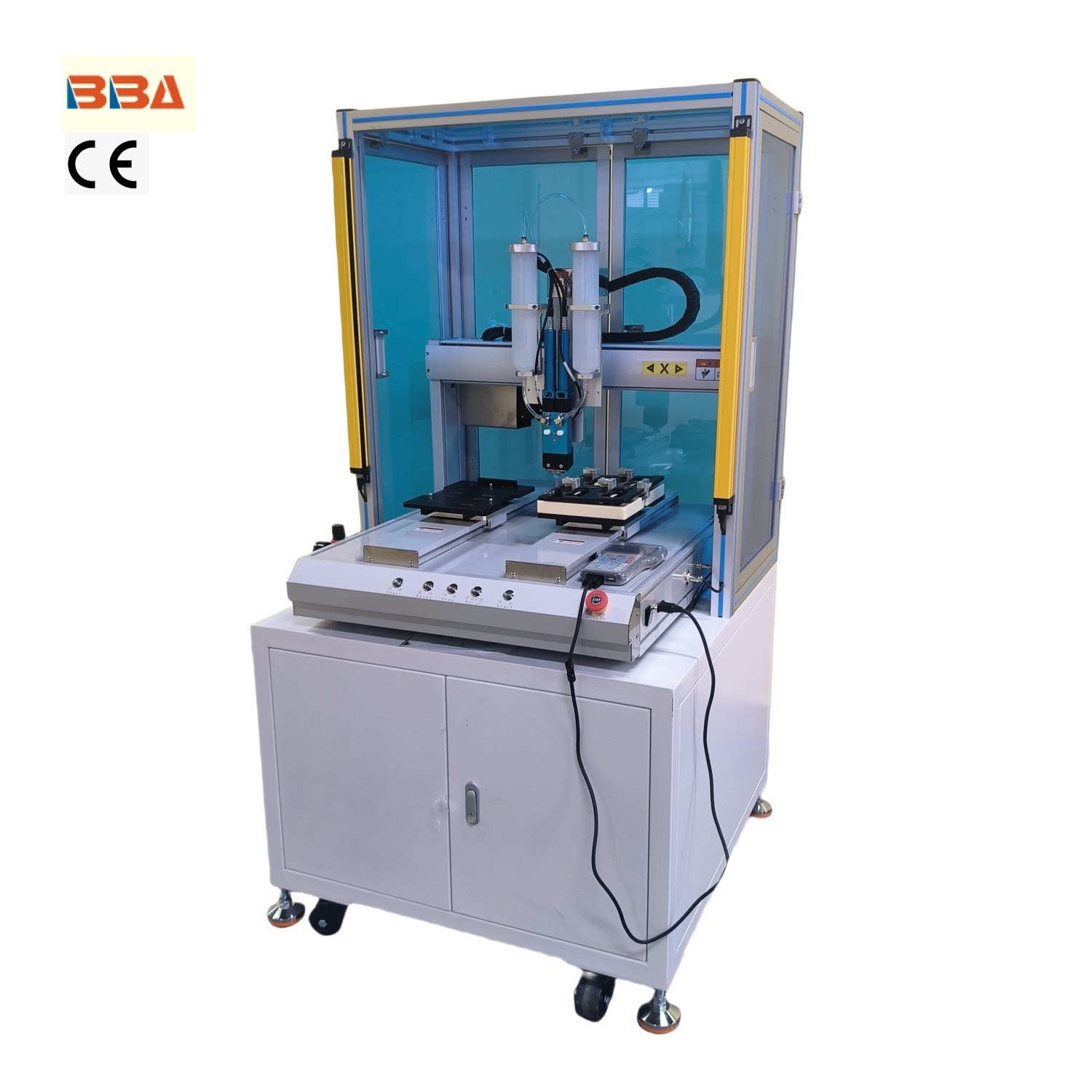

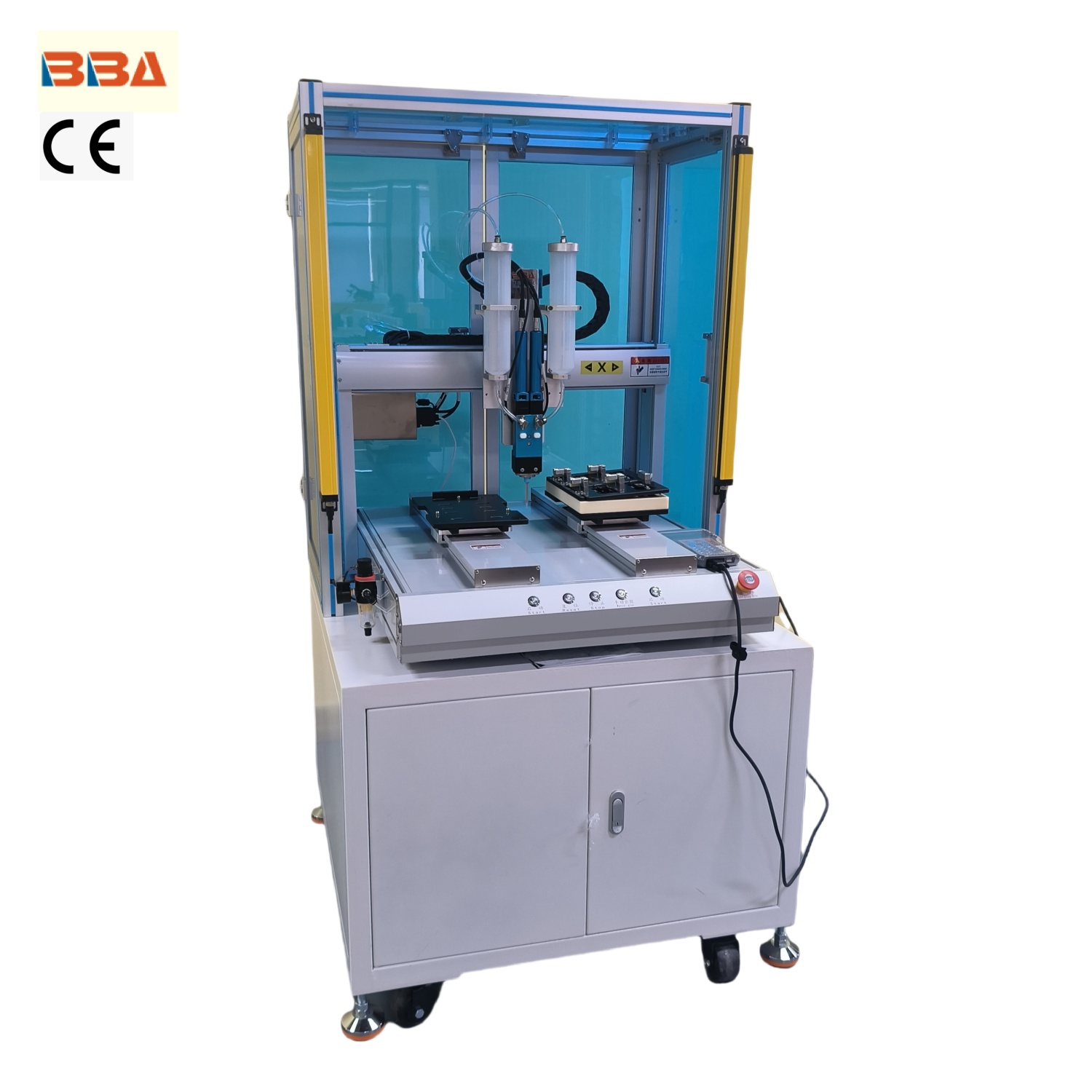

BBA High Efficiency Desktop adhesive dispensing machine with Cold Glue Applicator used in Battery Assembly
This BBA high-efficiency desktop adhesive dispensing machine with a cold glue applicator is designed for battery assembly. It ensures precise, efficient cold glue application, ideal for desktop use in battery manufacturing to enhance productivity and adhesive accuracy.
Product Description
BBA High Efficiency Desktop adhesive dispensing machine with Cold Glue Applicator used in Battery Assembly
Full Series of BBA Dispensing machinery
| Model | BBA-331DJ | BBA-5331DJ | BBA-6441DJ | CUSTOMIZED | ||||
| (Single Y platform) | (Double Y platform) | (Dual solder feeding systems) | ||||||
| Power supply | AC 110/220V 50/60HZ | |||||||
| Stroke | X | 300mm | X | 500mm | X1/X2 | 600mm | To order | |
| Y | 300mm | Y1/Y2 | 300mm | Y1/Y2 | 400mm | |||
| Z | 100mm | Z | 100mm | Z | 100mm | |||
| Maximum Load Weight | 8KG (for work platform) | To order | ||||||
| Running track | Dotted, line, arcs and irregular paths | |||||||
| Moving speed | 10-800mm/s | |||||||
| Air pressure | 0.5-0.7MPa | |||||||
| Position accuracy | ±0.05mm/axis | |||||||
| Program capacity | 999 groups/1000 points per group | |||||||
| Motor system | Micro Precision Stepping Motor | |||||||
| Transmission mode | Precision toothed belt+ guide rail | |||||||
|
0.01ml | |||||||

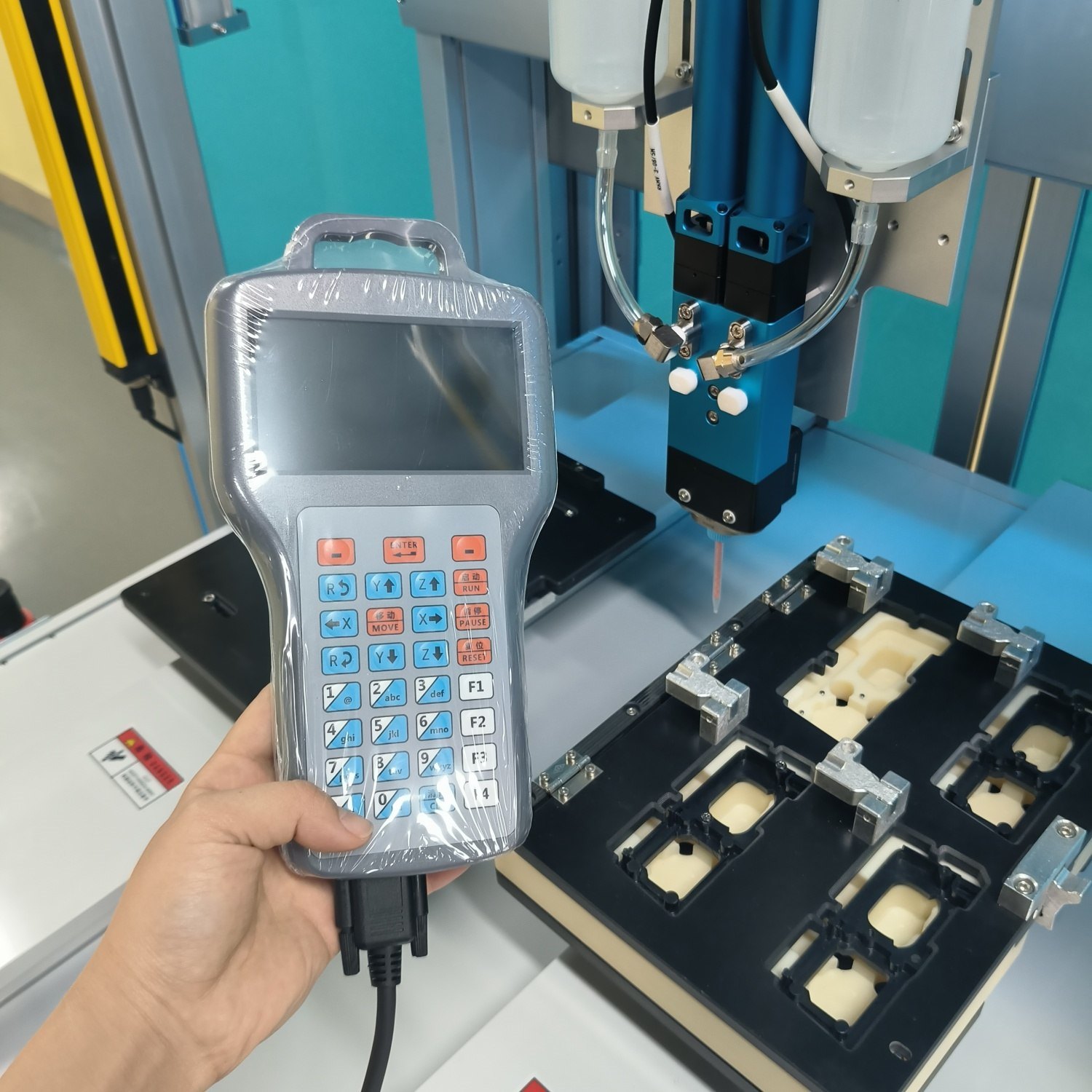

| Control panel | Handheld Teaching pendant with display screen | |||||||
| Work efficiency | 1.0~1.2s/point | |||||||
| Work environment | Temperature: 5-50ºC Humidity: 20-90% | |||||||
| Weight | 60kg | 90kg | 120kg | To order | ||||
| External Machine Size(L*W*H) | 700*630*700mm | 820*730*700mm | 920*730*700mm | To order | ||||
