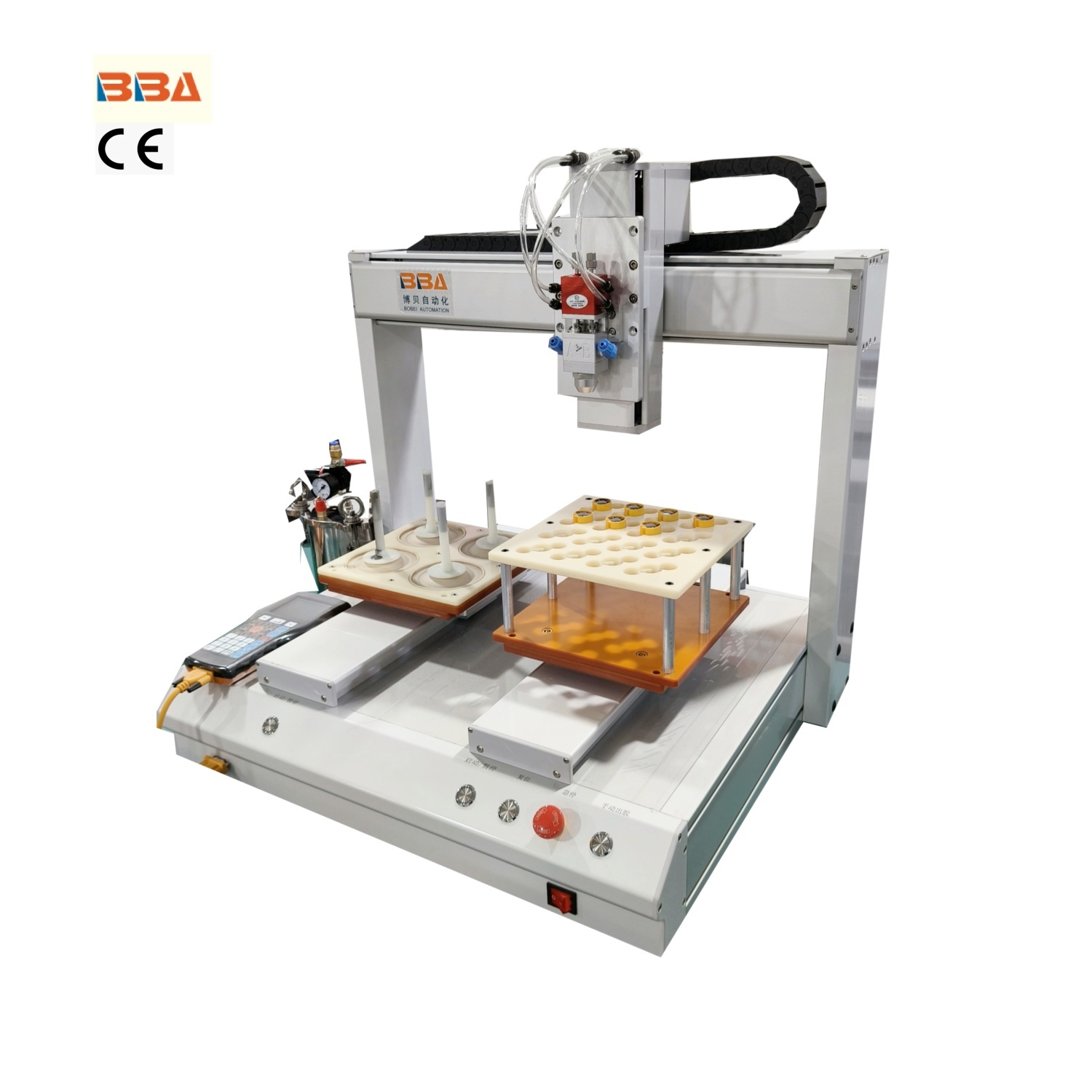

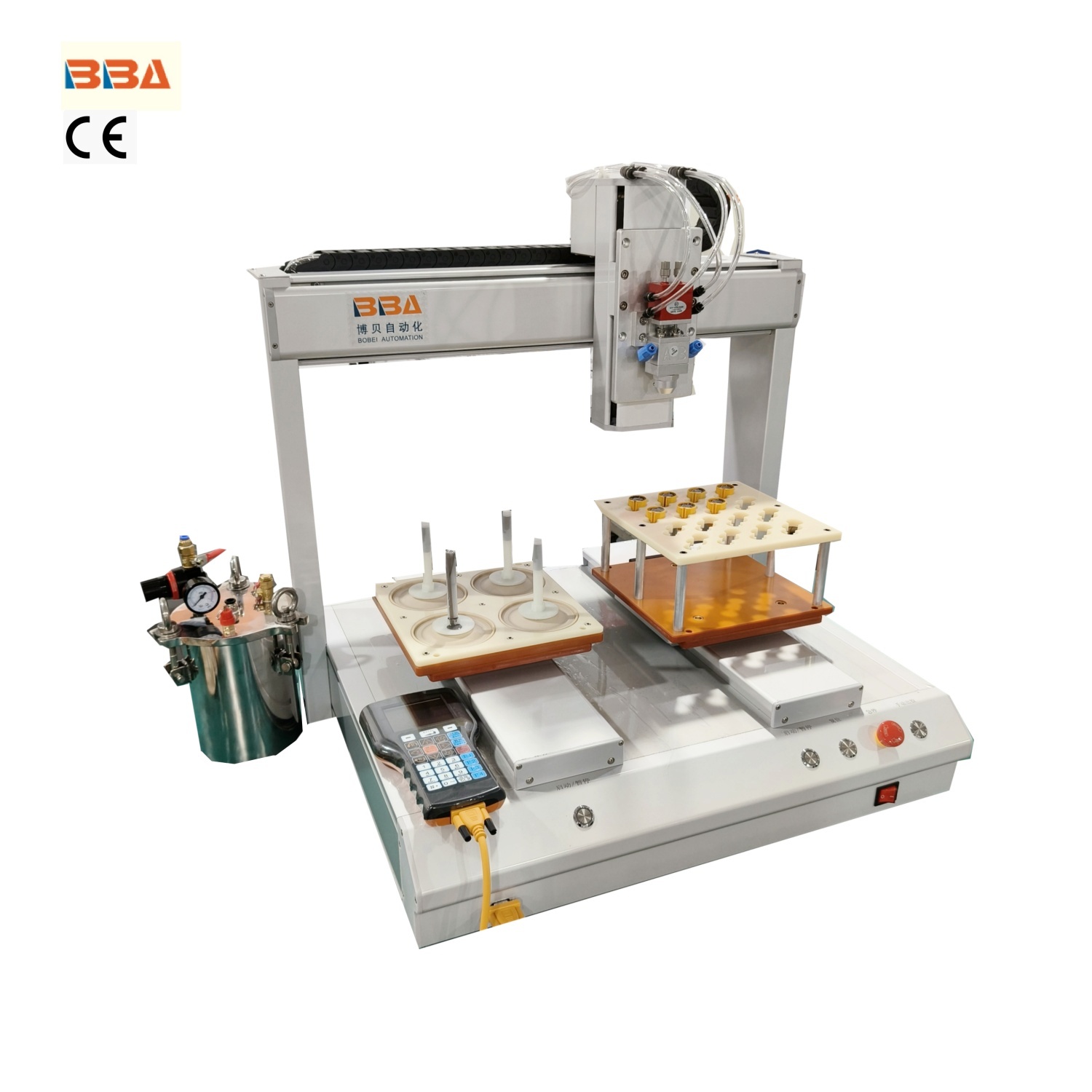

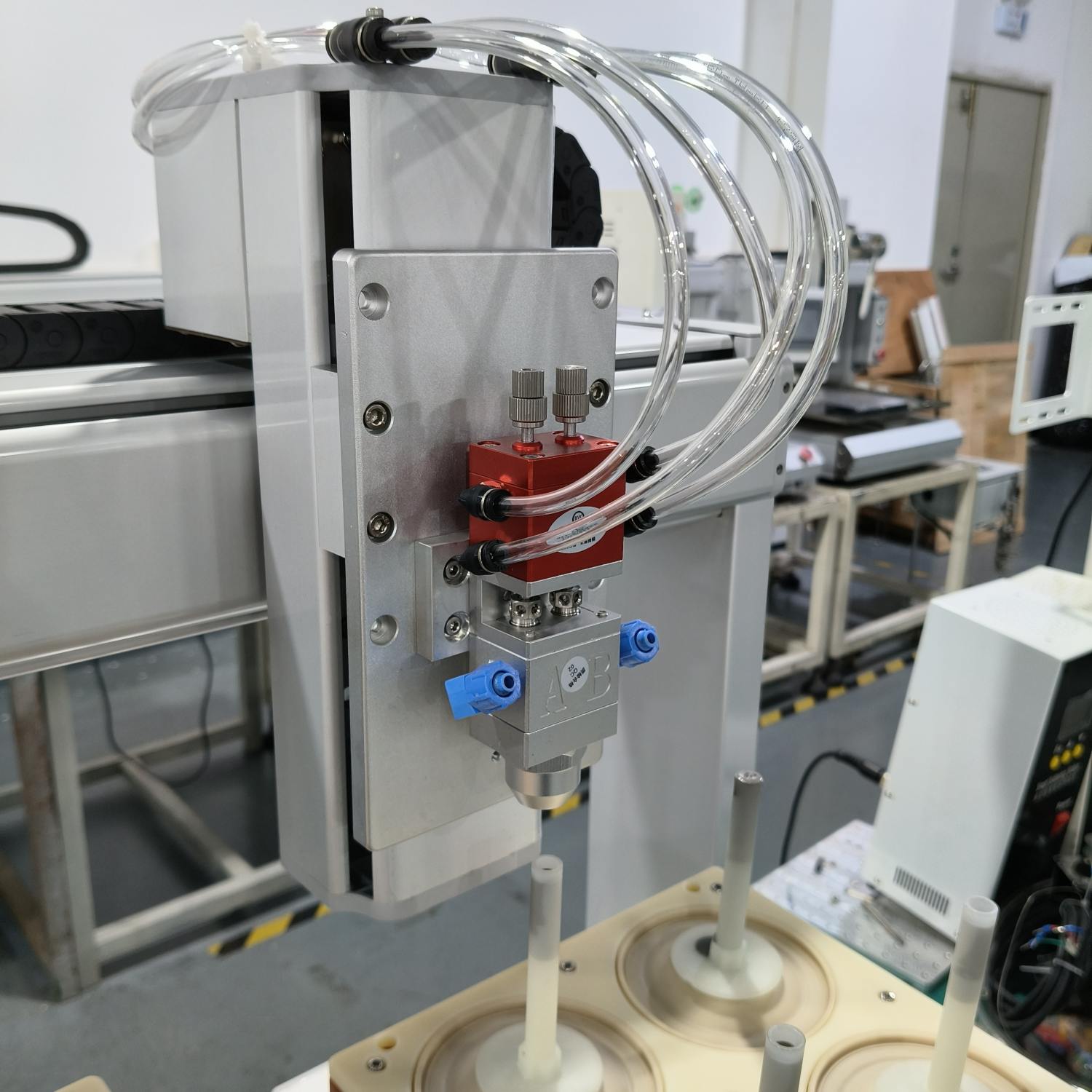

BBA Adhesive dispensing machine XYZ Axis style with Cold Glue Applicator and UV Glue Dispenser for PCB Coating
This BBA XYZ axis adhesive dispensing machine integrates a cold glue applicator and UV glue dispenser, designed for PCB coating. It enables precise, automated dispensing of cold and UV adhesives, ensuring uniform coating and reliable protection for PCBs in industrial applications.
Product Description
BBA Adhesive dispensing machine XYZ Axis style with Cold Glue Applicator and UV Glue Dispenser for PCB Coating
Full Series of BBA Dispensing machinery
| Model | BBA-331DJ | BBA-5331DJ | BBA-6441DJ | CUSTOMIZED | ||||
| (Single Y platform) | (Double Y platform) | (Dual solder feeding systems) | ||||||
| Power supply | AC 110/220V 50/60HZ | |||||||
| Stroke | X | 300mm | X | 500mm | X1/X2 | 600mm | To order | |
| Y | 300mm | Y1/Y2 | 300mm | Y1/Y2 | 400mm | |||
| Z | 100mm | Z | 100mm | Z | 100mm | |||
| Maximum Load Weight | 8KG (for work platform) | To order | ||||||
| Running track | Dotted, line, arcs and irregular paths | |||||||
| Moving speed | 10-800mm/s | |||||||
| Air pressure | 0.5-0.7MPa | |||||||
| Position accuracy | ±0.05mm/axis | |||||||
| Program capacity | 999 groups/1000 points per group | |||||||

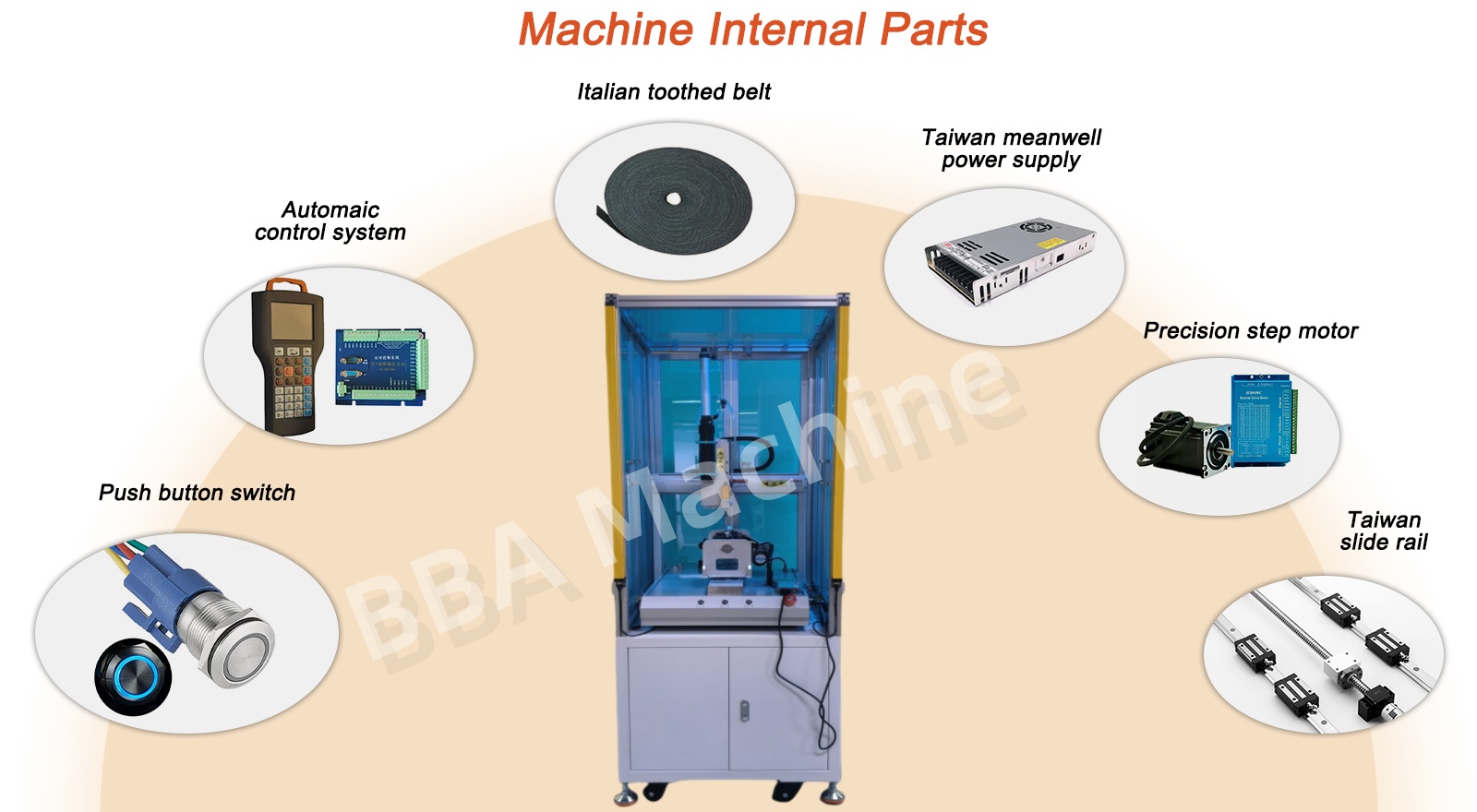

| Motor system | Micro Precision Stepping Motor | |||||||
| Transmission mode | Precision toothed belt+ guide rail | |||||||
|
0.01ml | |||||||
| Control panel | Handheld Teaching pendant with display screen | |||||||
| Work efficiency | 1.0~1.2s/point | |||||||
| Work environment | Temperature: 5-50ºC Humidity: 20-90% | |||||||
| Weight | 60kg | 90kg | 120kg | To order | ||||
| External Machine Size(L*W*H) | 700*630*700mm | 820*730*700mm | 920*730*700mm | To order | ||||
